Main Dimensions & Performance Data
| d | 75 mm | Bore diameter |
| H | 166 mm | Height |
| L | 214 mm | Length total |
| ≈m | 6.37 kg | Weight |
Mounting dimensions
| A1 | 25 mm | Width guidance groove |
H13 | Width guidance groove clearance | |
| H1 | 151 mm | Distance guidance grooves |
0.25 mm | Upper distance guidance groove tolerance | |
-0.25 mm | Lower distance guidance groove tolerance | |
| N | 41 mm | Fixing bore |

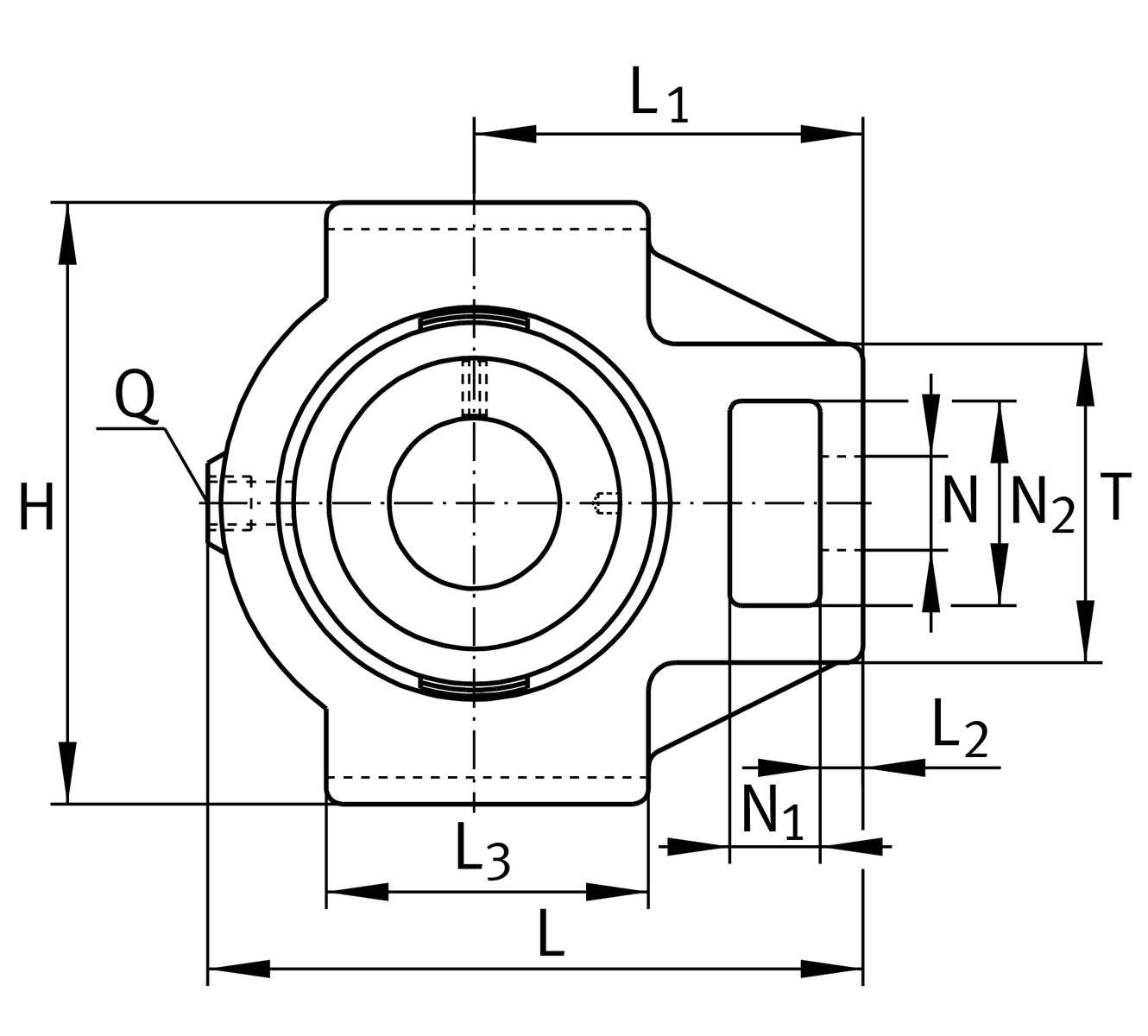

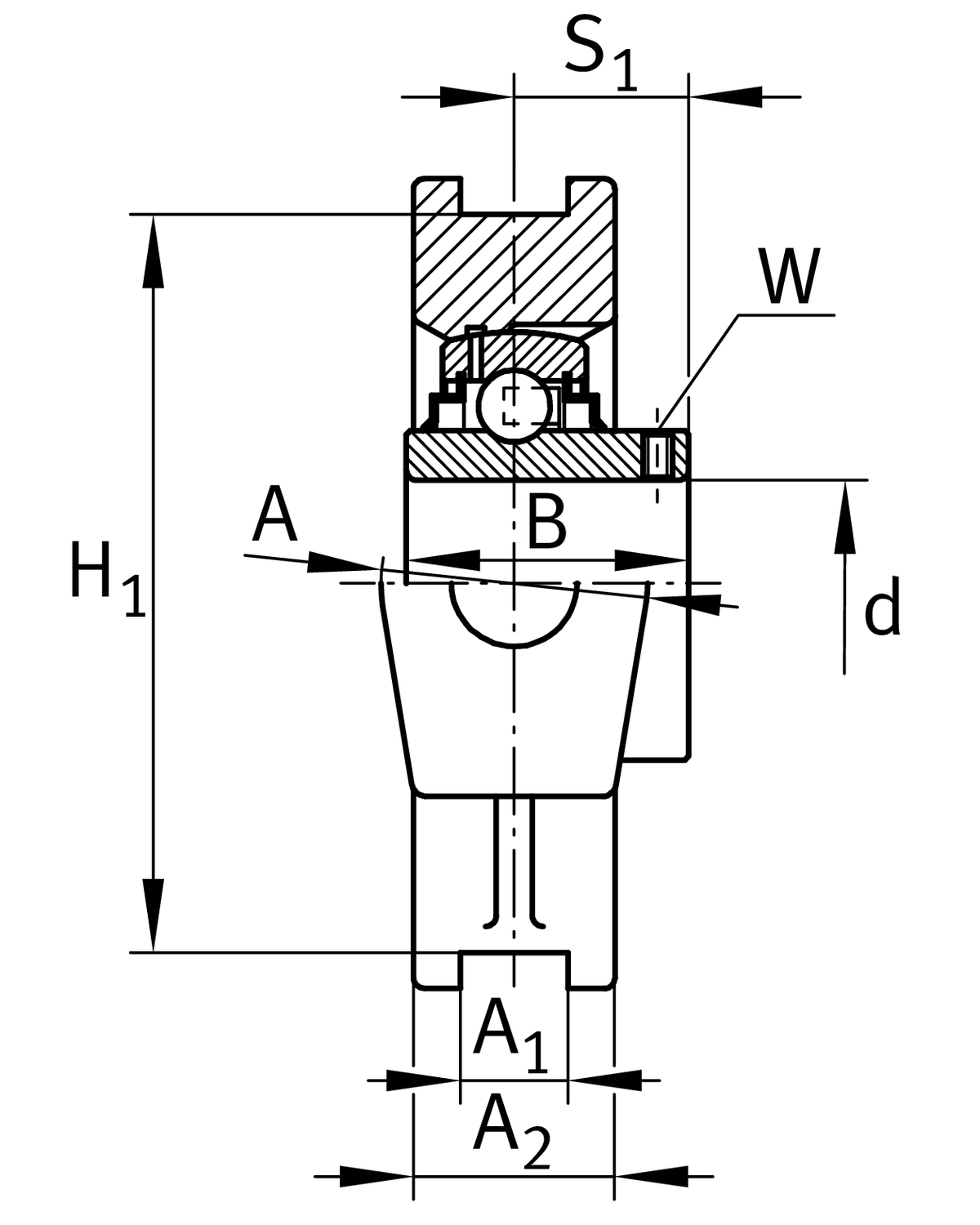

Dimensions
| L1 | 135 mm | Distance shaft axis |
| L2 | 20 mm | Length fixed link |
| L3 | 120 mm | Length guidance groove |
| A | 70 mm | Width housing fixing side |
| N1 | 35 mm | Width recess |
| N2 | 70 mm | Height recess |
| B | 77.8 mm | Width inner ring |
| S1 | 44.5 mm | Distance of raceway to locking collar |
| T | 110 mm | Height housing fixing side |
| Q | M6 | Connection thread for lubrication |
| A2 | 50 mm | Width housing |
Additional information
TUE15 | Housing | |
GYE75-XL-KRR-B | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Material | GG | Grey cast iron |
