FAG INA Schaeffler
INA
RCJY75-XL
Flanged housing unit RCJY75-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
75 mm
Bore diameter
L
197 mm
Flange width
U
85.8 mm
Total height unit
Cr
66,000 N
Basic dynamic load rating, radial
C0r
44,500 N
Basic static load rating, radial
Cur
1,880 N
Fatigue load limit, radial
≈m
5.72 kg
Weight

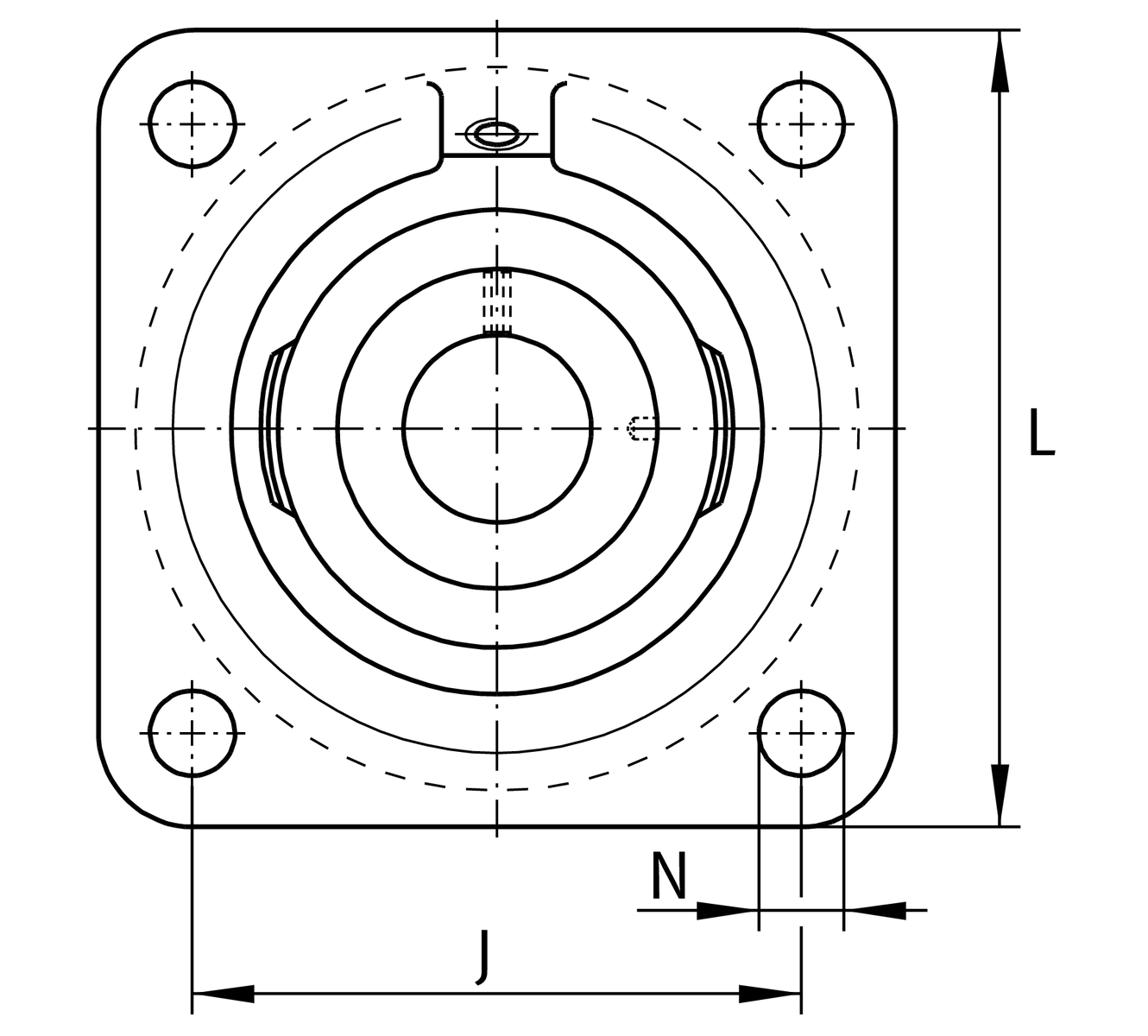

Mounting dimensions
J
153 mm
Distance fixing bore
N
23 mm
Fixing bore
n
4
Number of screwing holes

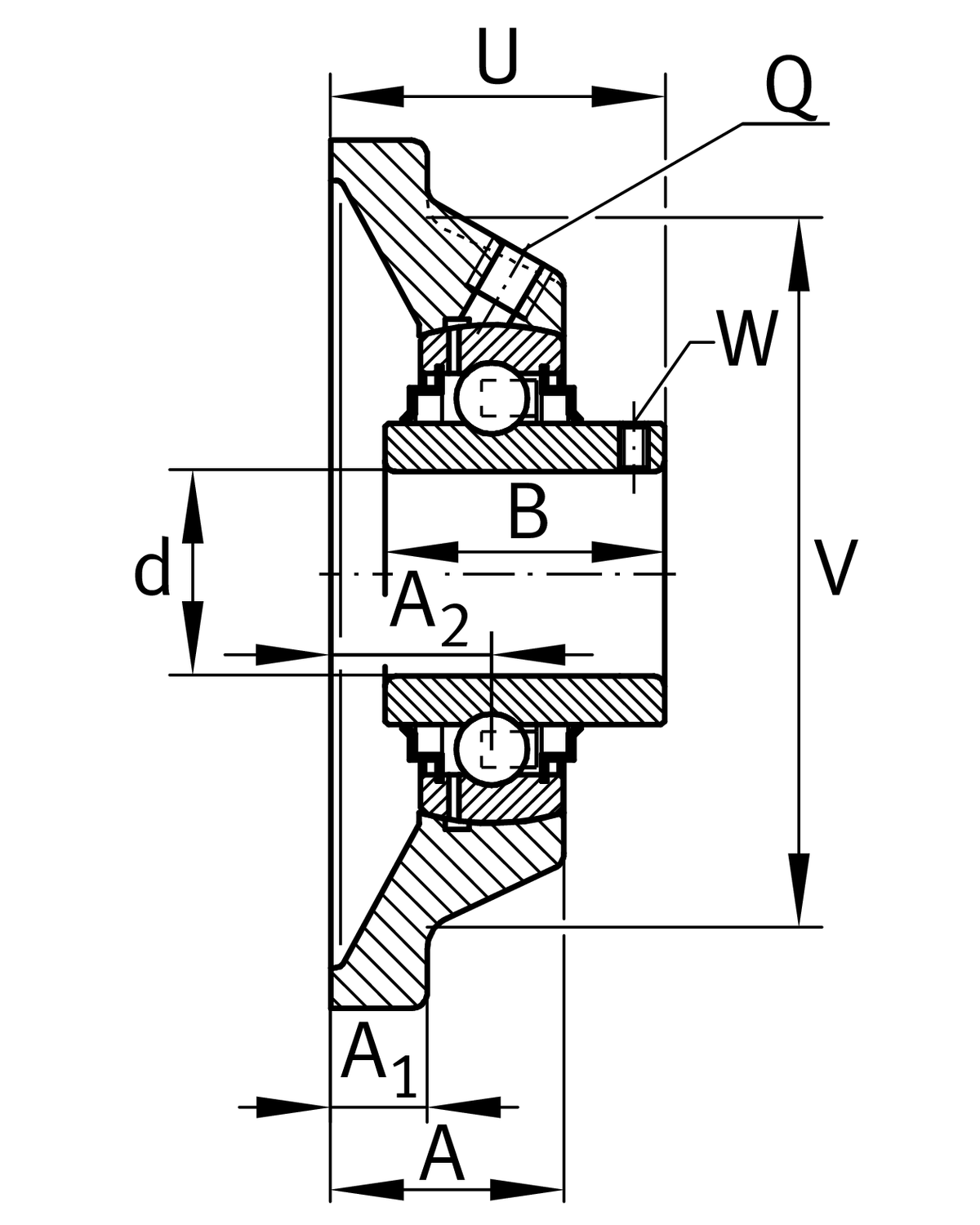

Dimensions
A
55.8 mm
Height housing
A1
20 mm
Thickness of flange
A2
41.3 mm
Distance raceway
B
77.8 mm
Width
V
170 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
CJ15
Housing
GYE75-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
