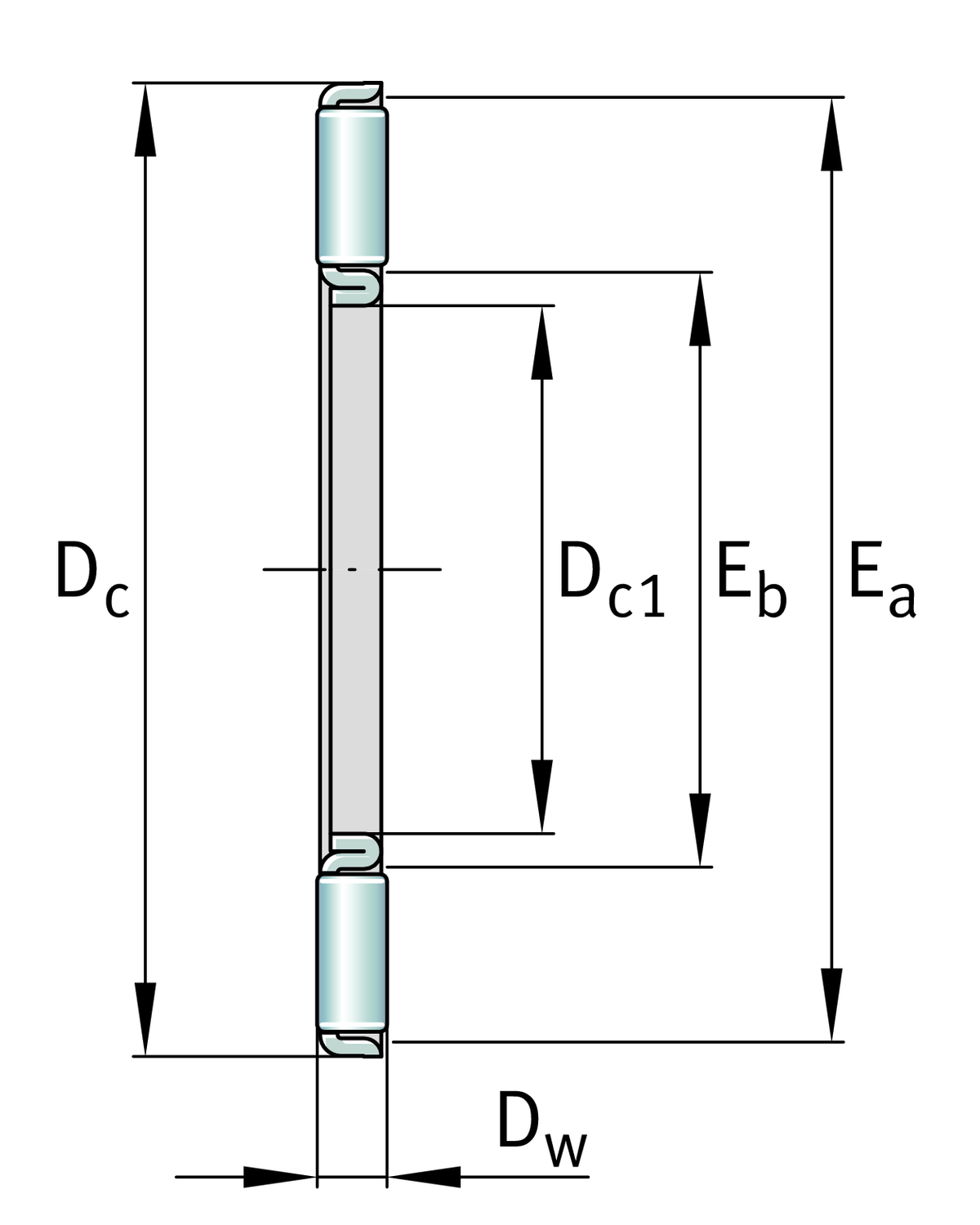

Main Dimensions & Performance Data
| Dc1 | 4 mm | Bore diameter cage |
| Dc | 14 mm | Outside diameter |
| Dw | 2 mm | Rolling element diameter |

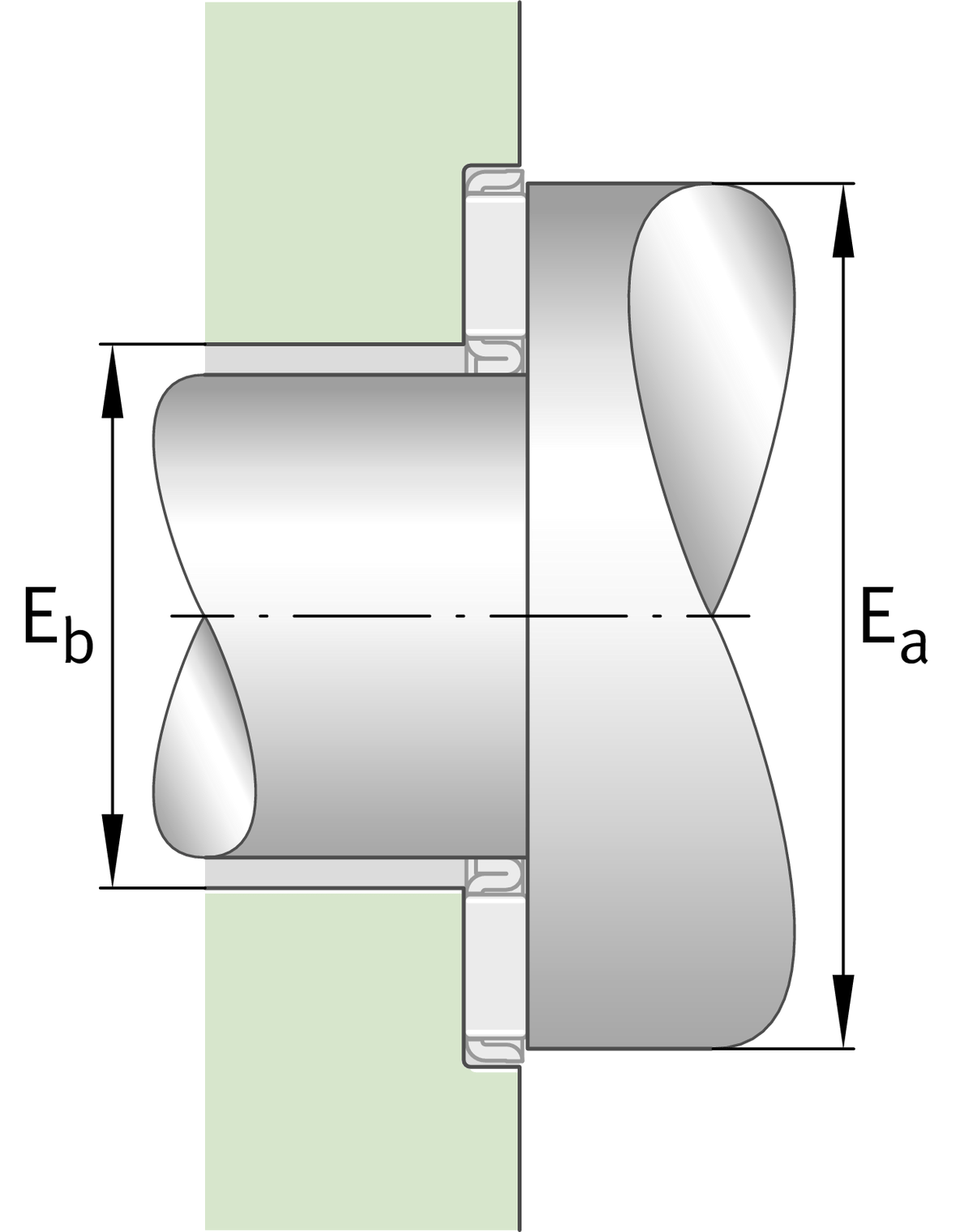

| Ea | 13 mm | Raceway dimension |
| Eb | 5 mm | Raceway dimension |
| ca | 4,400 N | Basic dynamic load rating, axial |
| c0a | 8,000 N | Basic static load rating, axial |
| cua | 1,130 N | Fatigue load limit, axial |
| nG | 21,400 1/min | Limiting speed |
| nϑr | 14,900 1/min | Reference speed |
| ≈m | 6.2 g | Weight |
Additional information
AS0414 | Axial bearing washer |
