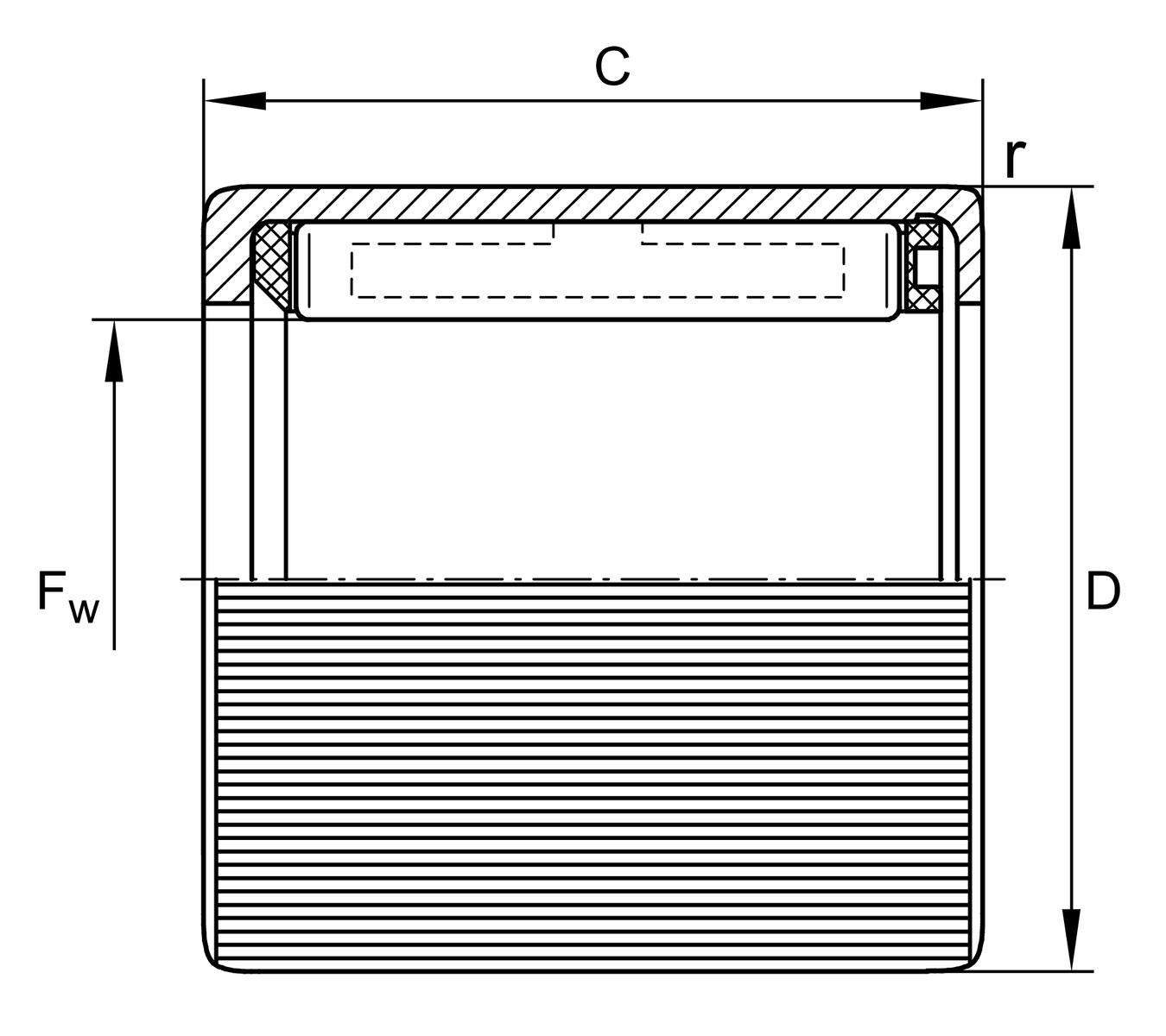

Main Dimensions & Performance Data
| Fw | 3 mm | Under roller diameter |
| D | 6.5 mm | Outside diameter |
| C | 6 mm | Width, outer ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| Md per | 0.06 Nm | Permissible torque |
| nGW | 45,000 1/min | Limiting speed for rotating shaft |
| nGA | 8,000 1/min | Limiting speed for rotating outer ring |
| ≈m | 0.717 g | Weight |
Temperature range
| Tmin | -10 °C | Operating temperature min. |
| Tmax | 70 °C | Operating temperature max. |
Additional information
HK0306-TV | Drawn cup needle roller bearings for radial bearing arrangement |
