Main Dimensions & Performance Data
| d | 60 mm | Bore diameter |
| DSP | 110 mm | Outside diameter |
| B | 61.9 mm | Width |
| Cur | 1,710 N | Fatigue load limit, radial |
| B1 | 77.9 mm | Locking collar total width |
| Cr | 52,000 N | Basic dynamic load rating, radial |
| C0r | 36,000 N | Basic static load rating, radial |
| ≈m | 1.83 kg | Weight |

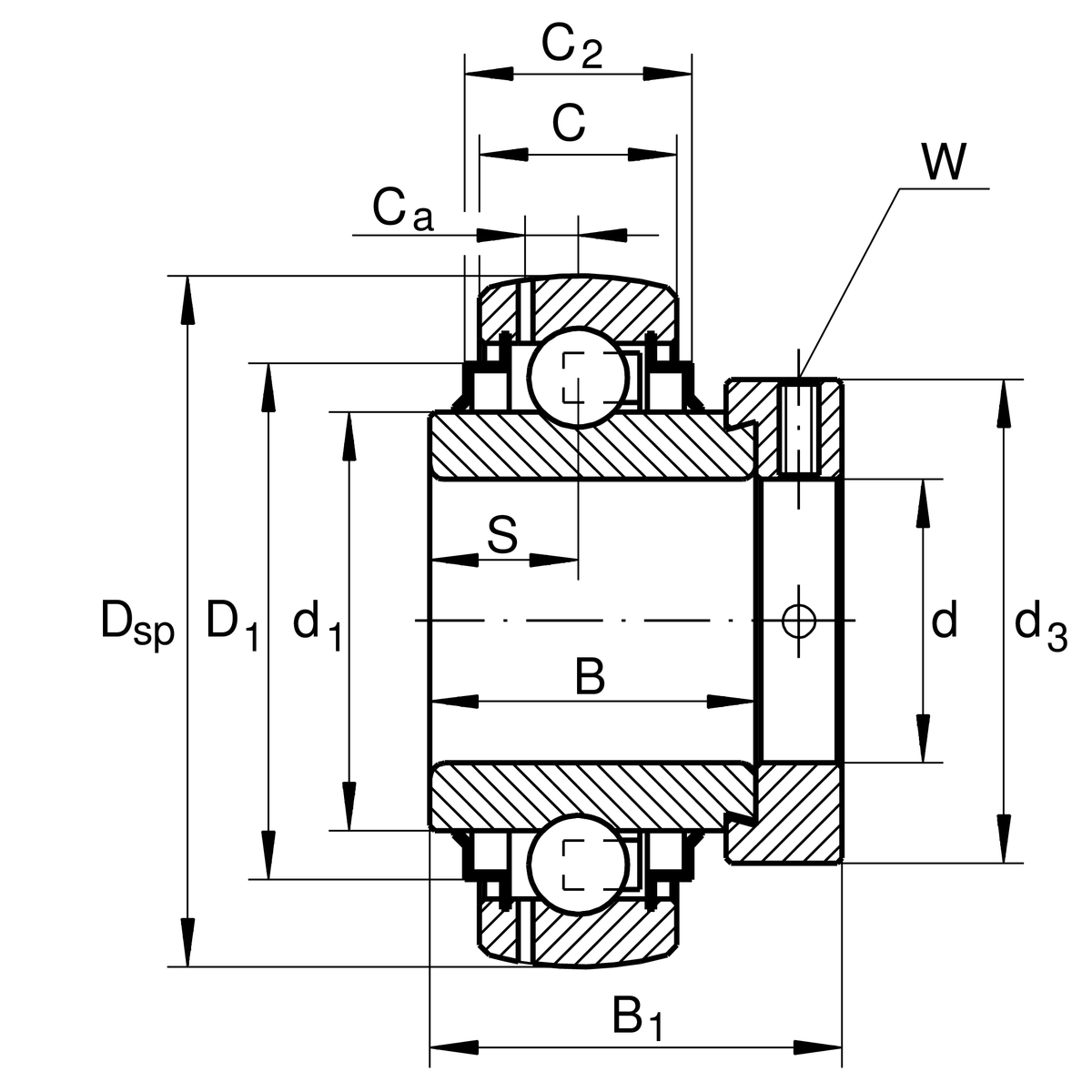

Dimensions
| C | 24 mm | Width, outer ring |
| C2 | 29 mm | Sealing total width |
| S | 31 mm | Distance raceway |
| d1 | 76.5 mm | Rib diameter inner ring |
| D1 | 94.5 mm | Outside diameter seal |
| Ca | 7.2 mm | Distance to lubrication hole |
| d3 | 84 mm | Outside diameter locking collar/locknut |
| W | 5 mm | Width of flats |
Calculation factors
| f0 | 14.3 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B | |
| Manufacturing instruction | FA164 | High temperature design up to +250°C |
