Main Dimensions & Performance Data

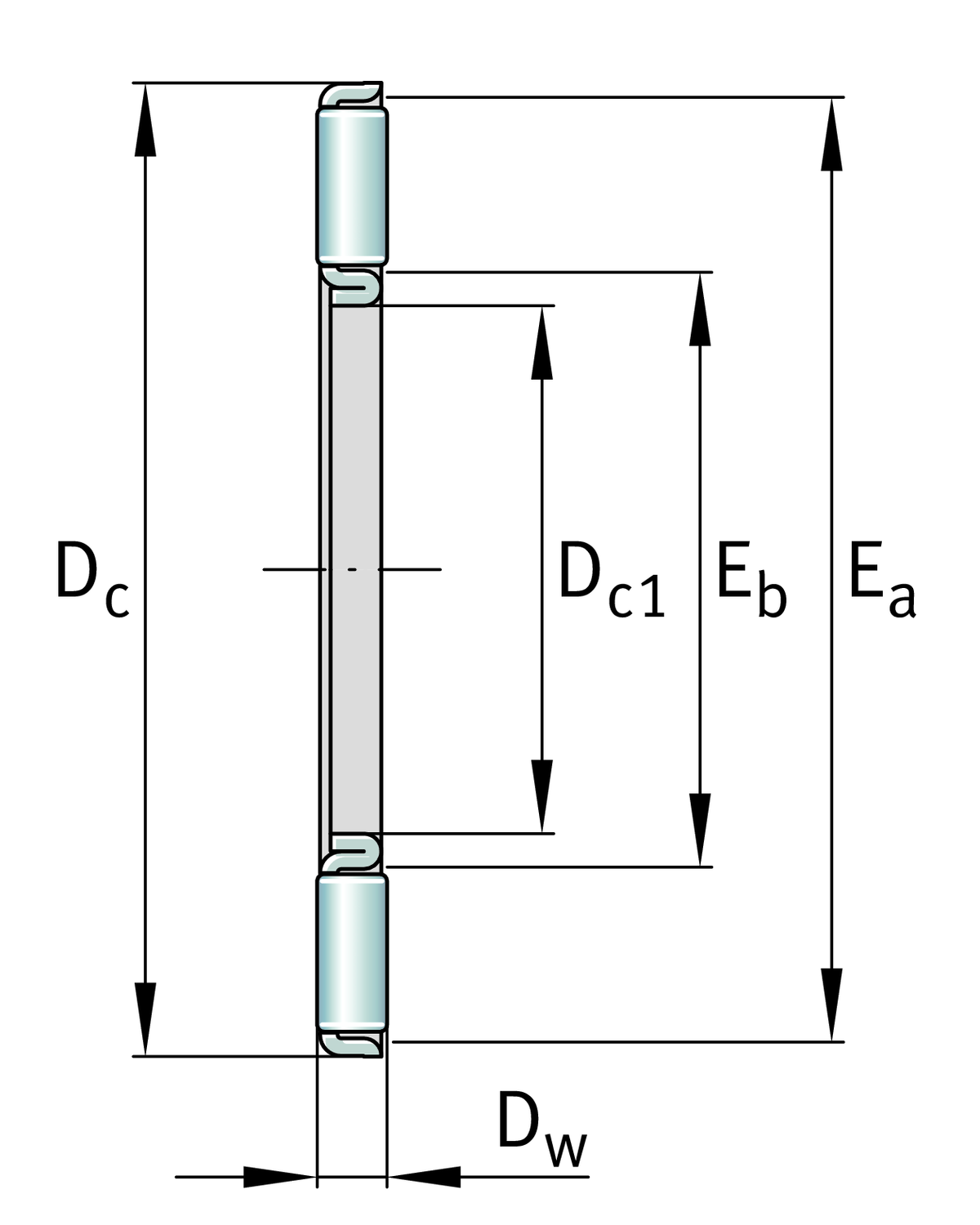

| Dc1 | 60 mm | Bore diameter cage |
| Dc | 85 mm | Outside diameter |
| Dw | 3 mm | Rolling element diameter |

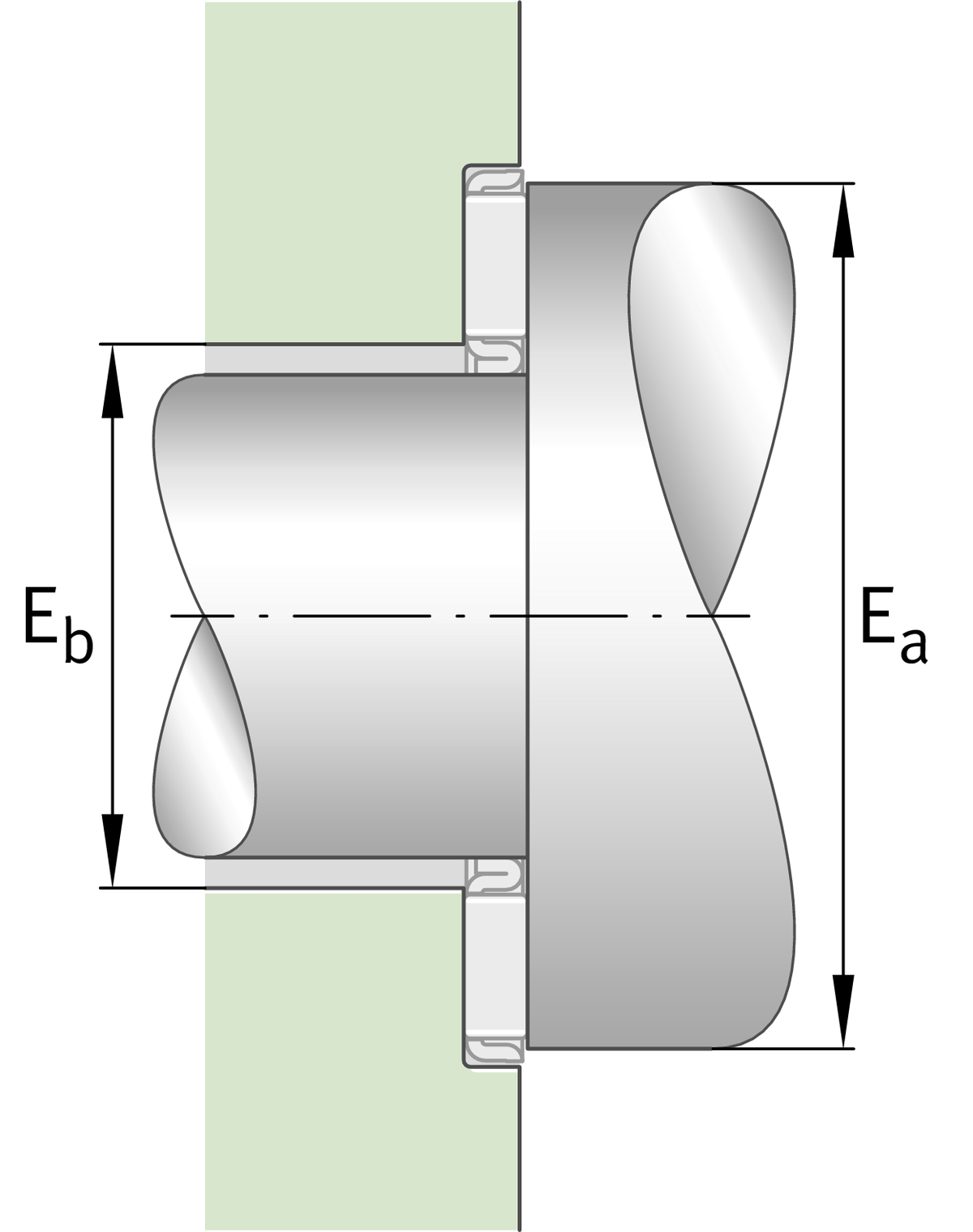

| Ea | 83 mm | Raceway dimension |
| Eb | 65 mm | Raceway dimension |
| ca | 45,000 N | Basic dynamic load rating, axial |
| c0a | 234,000 N | Basic static load rating, axial |
| cua | 27,000 N | Fatigue load limit, axial |
| nG | 3,950 1/min | Limiting speed |
| nϑr | 1,590 1/min | Reference speed |
| ≈m | 32.794 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
AS6085 | Axial bearing washer |
