RMEO90-XL
Flanged housing unit RMEO90-XL
Thêm vào yêu cầu báo giá

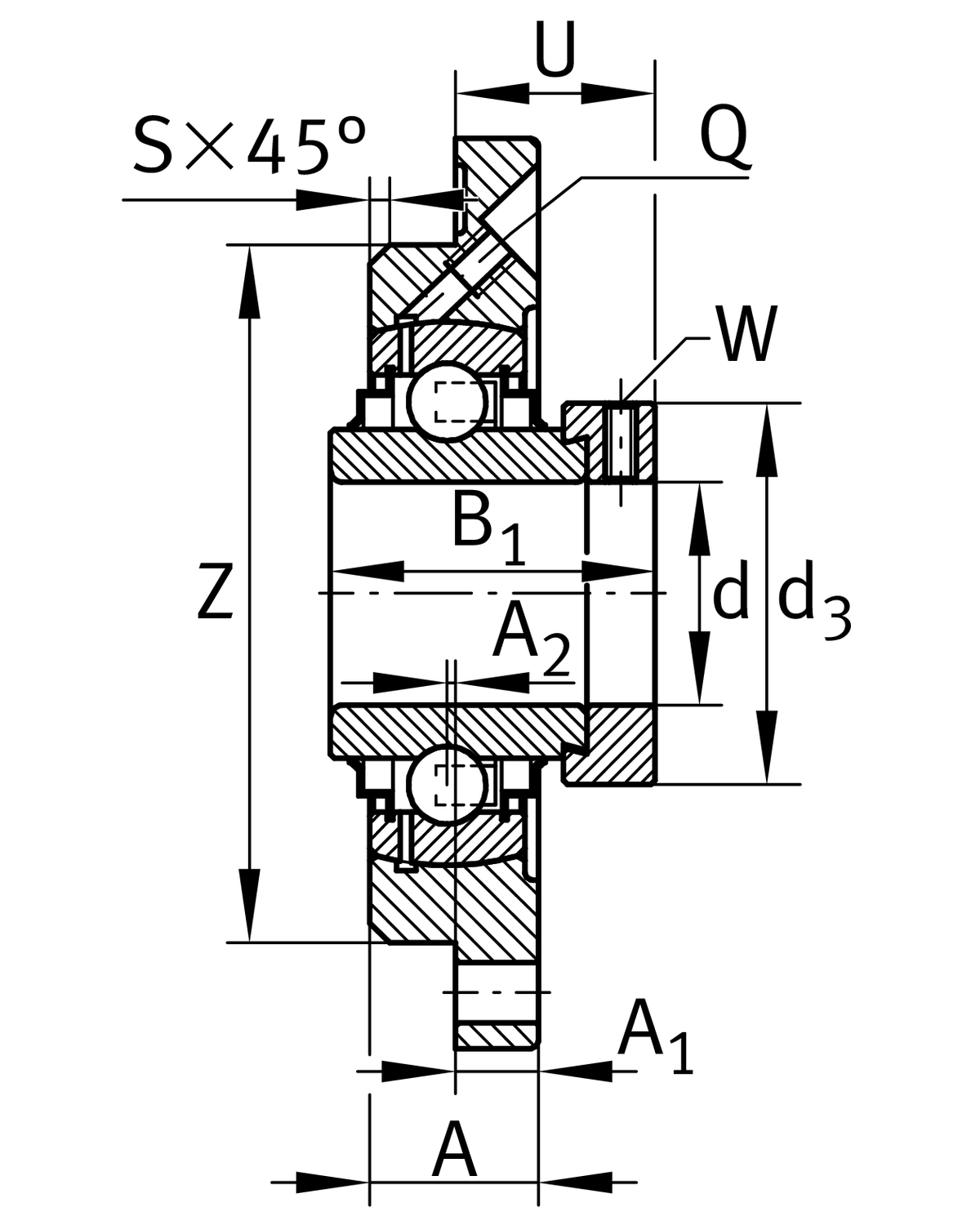

Main Dimensions & Performance Data
d
90 mm
Bore diameter
H
300 mm
Height flange
B1
101 mm
Locking collar total width
U
62.5 mm
Total height unit
Cr
151,000 N
Basic dynamic load rating, radial
C0r
107,000 N
Basic static load rating, radial
Cur
3,850 N
Fatigue load limit, radial
≈m
14.95 kg
Weight

Mounting dimensions
J
260 mm
Pitch circle diameter (holes)
N
22 mm
Fixing bore
Z
220 mm
Diameter spigot
h8
Diameter spigot clearance
W
6 mm
Width across flats
n
4
Number of screwing holes

Dimensions
A
50 mm
Height housing
A1
22 mm
Thickness of flange
A2
3 mm
Distance raceway
S
6 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
MEO18
Housing
GNE90-XL-KRR-B-FA107
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
