Main Dimensions & Performance Data
| d | 70 mm | Bore diameter |
| DSP | 125 mm | Outside diameter |
| B | 74.6 mm | Width |
| Cur | 2,020 N | Fatigue load limit, radial |
| Cr | 62,000 N | Basic dynamic load rating, radial |
| C0r | 44,000 N | Basic static load rating, radial |
| ≈m | 1.97 kg | Weight |

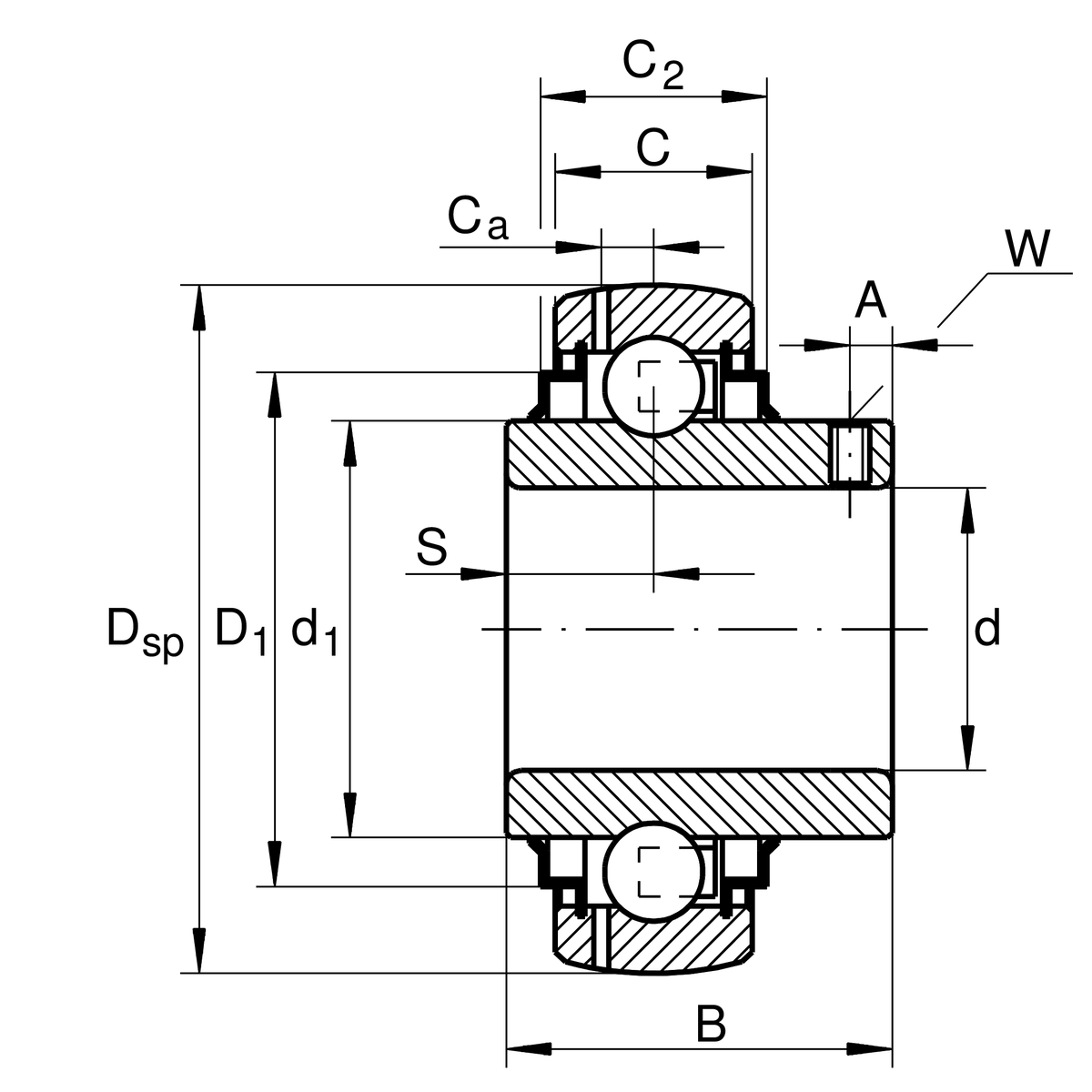

Dimensions
| C | 28 mm | Width, outer ring |
| C2 | 32 mm | Sealing total width |
| S | 30.2 mm | Distance raceway |
| d1 | 85.2 mm | Rib diameter inner ring |
| D1 | 109 mm | Outside diameter seal |
| Ca | 8.9 mm | Distance to lubrication hole |
| A | 12 mm | Distance thread |
| W | 5 mm | Width of flats |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Calculation factors
| f0 | 14.4 | Calculation factor |
Your current product variant
| Sealing | KTT | Triple lip seals on both sides |
| Shape of outer surface | B | |
| Lubricant | L114 | Grease (L114) |
