FAG INA Schaeffler
FAG
UKFL212
Flanged housing unit UKFL212
Thêm vào yêu cầu báo giá

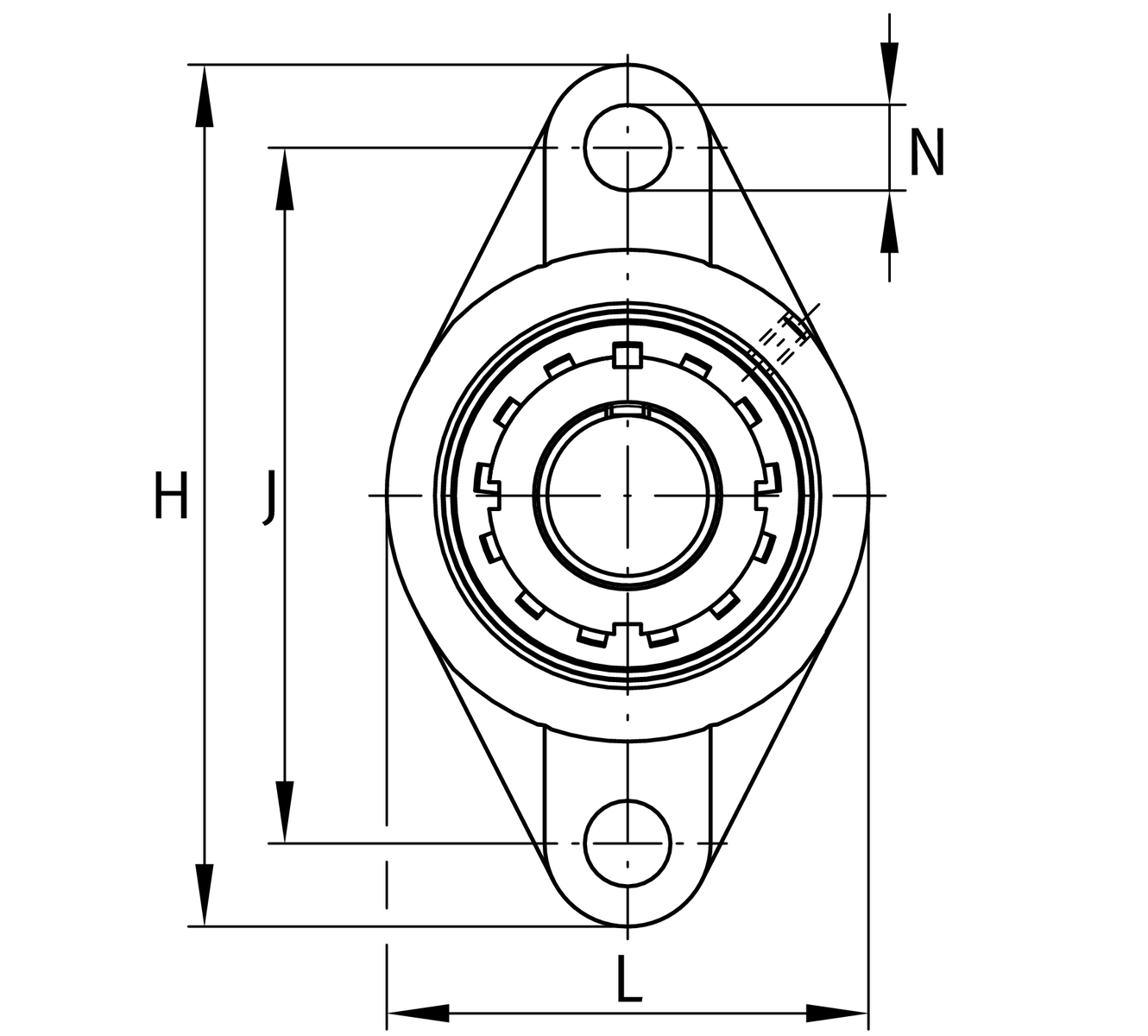

Main Dimensions & Performance Data
d
55 mm
Bore diameter
L
140 mm
Flange width
H
250 mm
Height flange
Cr
56,000 N
Basic dynamic load rating, radial
C0r
36,000 N
Basic static load rating, radial
Cur
1,870 N
Fatigue load limit, radial
≈m
4.05 kg
Weight

Mounting dimensions
J
202 mm
Distance fixing bore
N
23 mm
Fixing bore
n
2
Number of screwing holes

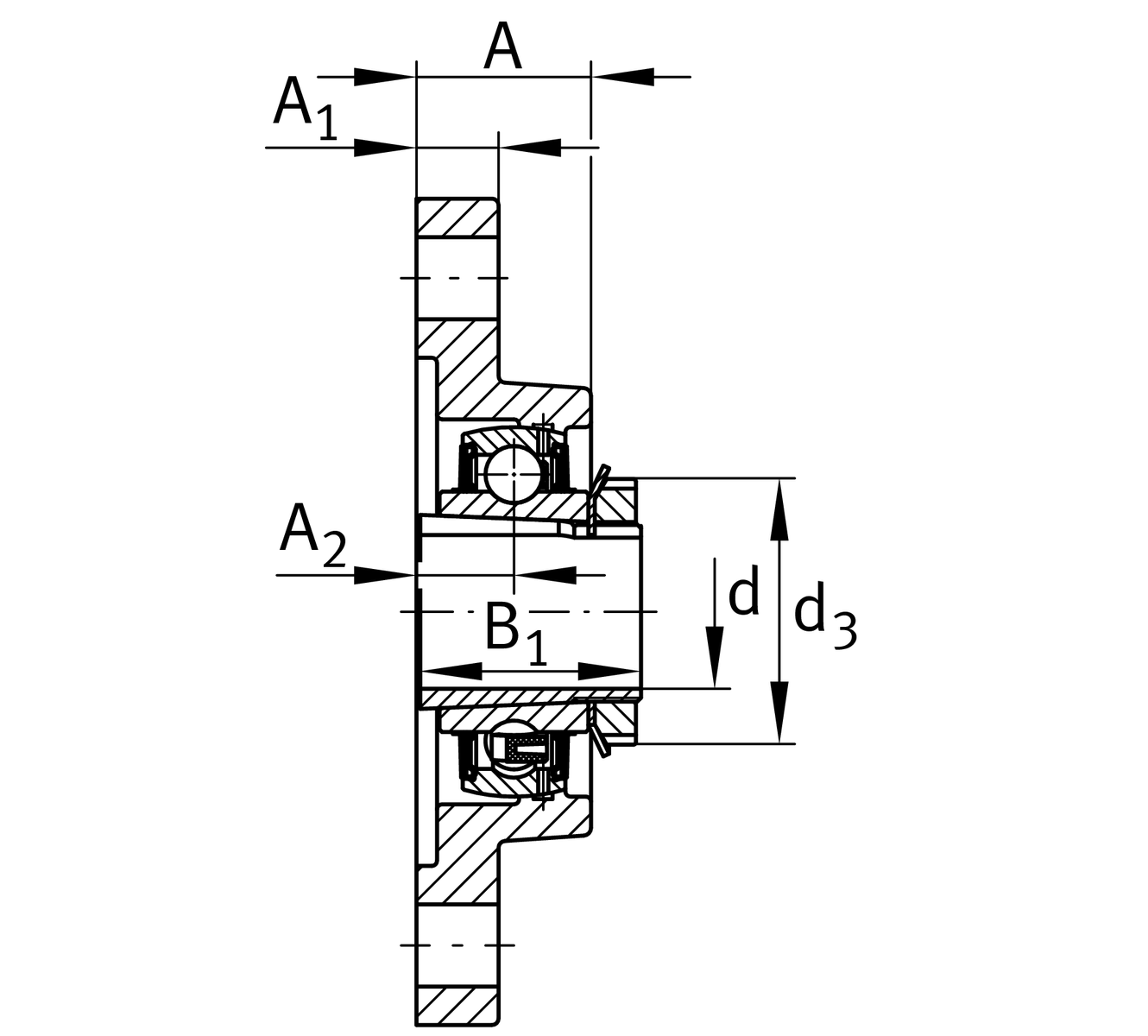

Dimensions
A
48 mm
Height housing
A1
20 mm
Thickness of flange
A2
29 mm
Distance raceway
B
40 mm
Width
B1
62 mm
Locking collar total width
d3
80 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
FL212
Housing
UK212
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
