RSHEY55-XL
Plummer block housing unit RSHEY55-XL
Thêm vào yêu cầu báo giá

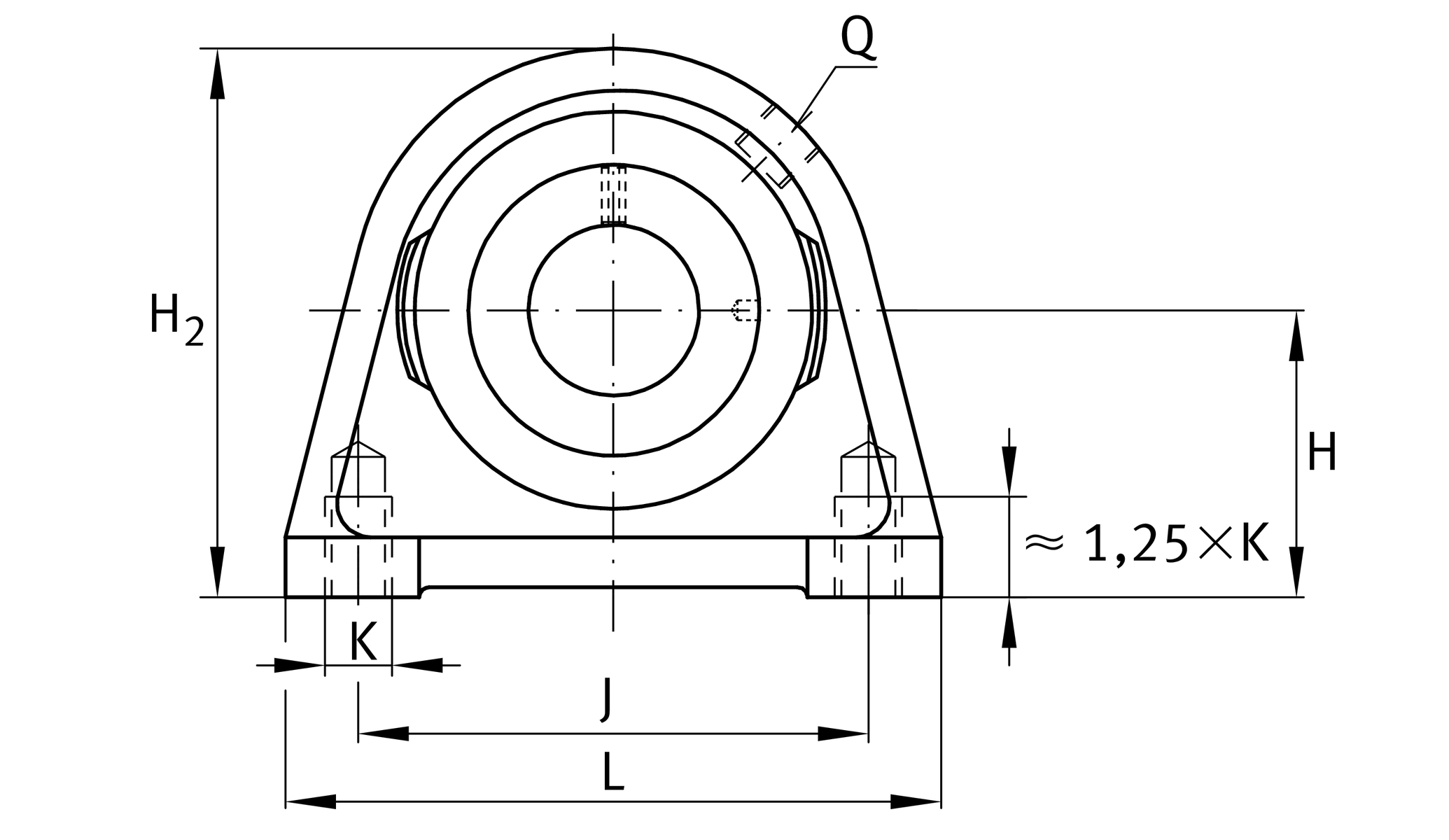

Main Dimensions & Performance Data
d
55 mm
Bore diameter
L
150 mm
Length total
H2
125 mm
Height
≈m
3.5 kg
Weight

Mounting dimensions
J
118 mm
Distance fixing bore
K
M16
Thread fixing bore

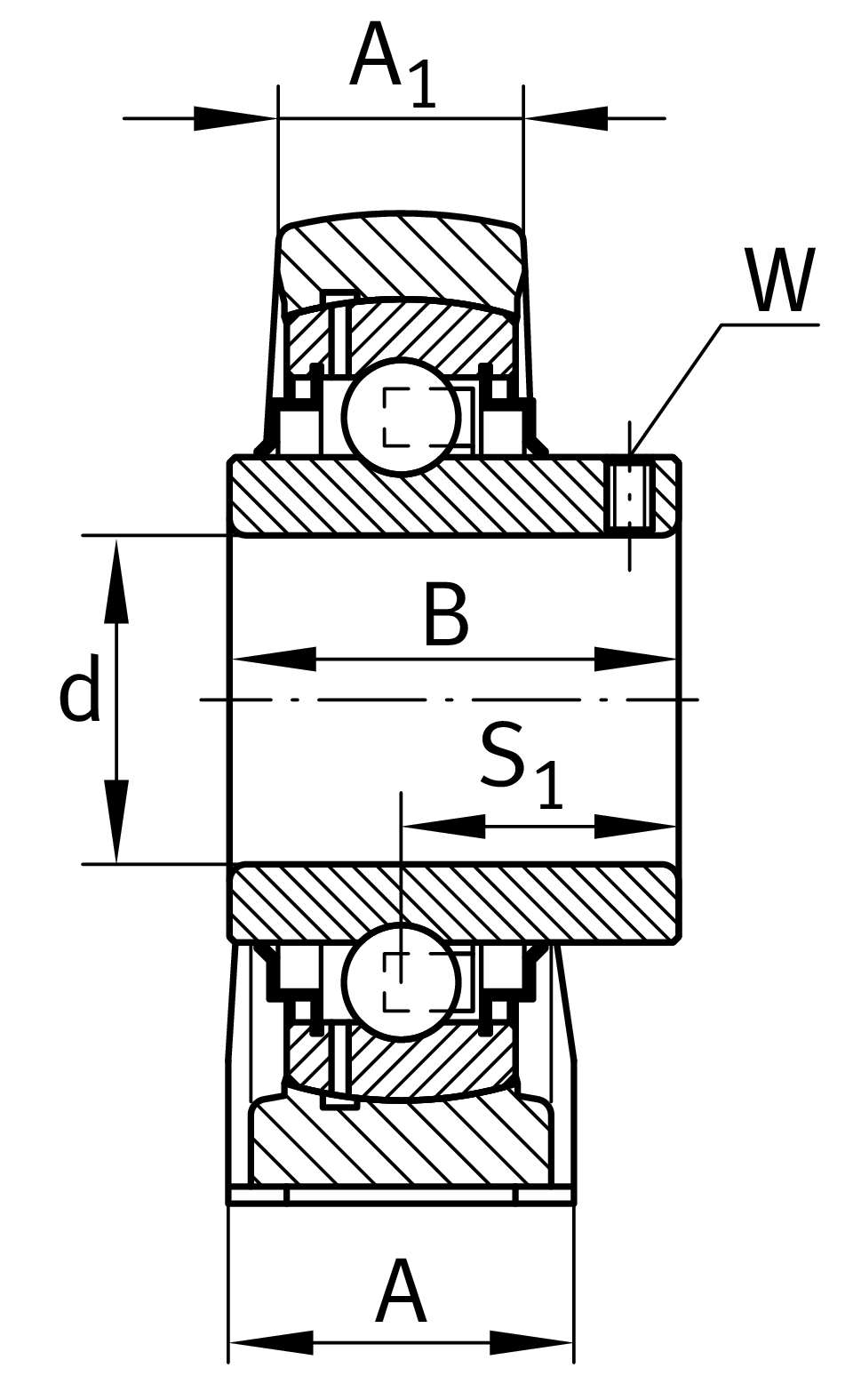

Dimensions
H
64 mm
Distance shaft axis
A
60 mm
Width (base)
A1
35 mm
Width (head)
Q
M6
Connection thread for lubrication
B
55.6 mm
Width of inner ring
S1
33.4 mm
Distance of raceway to locking collar

Additional information
SHE11
Housing
GYE55-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
