GVK100-208-KTT-B-AS2/V
Self-aligning deep groove ball bearings GVK100-208-KTT-B-AS2/V
Thêm vào yêu cầu báo giá

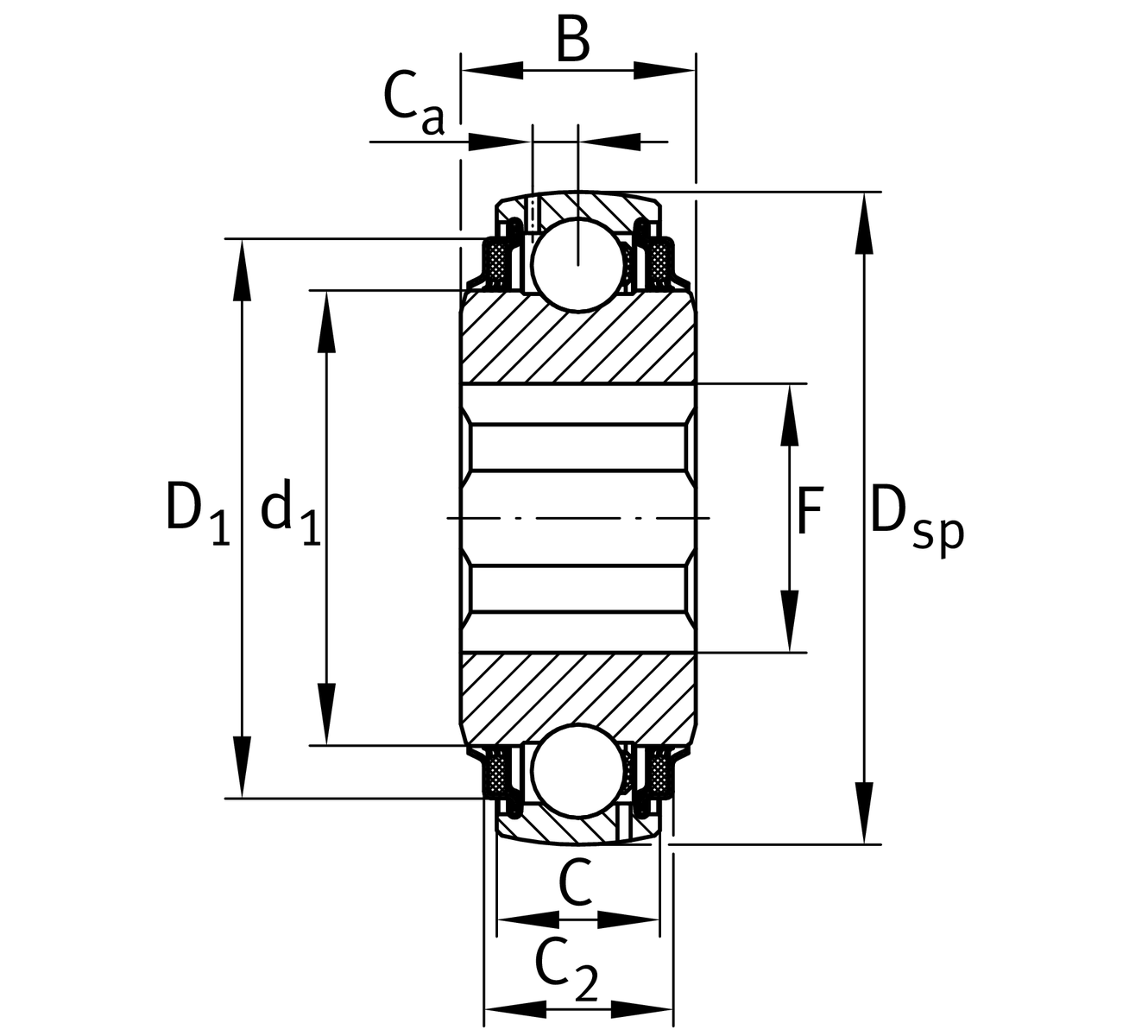

Main Dimensions & Performance Data
DSP
80 mm
Outside diameter
B
36.5 mm
Width
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.697 kg
Weight

Dimensions
D1
68.3 mm
Outside diameter seal
C
21 mm
Width, outer ring
F
35.4 mm
Maximum distance hexagonal bore
r
2.5 mm
Radius hexagonal bore
C2
28.1 mm
Sealing total width
d1
52.3 mm
Rib diameter inner ring
d
25.4 mm
Width of flats
Ca
6.4 mm
Distance to lubrication hole
0.9 mm
Width across flats upper tolerance
d
25.4 mm
Width across flats (Inch)
0.6 mm
Width across flats lower tolerance

Calculation factors
f0
13.6
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset208208
Deviating featureAS2/VAS2/V
