FAG INA Schaeffler
INA
GSK102-207-KRR-B-AS2/V
Self-aligning deep groove ball bearings GSK102-207-KRR-B-AS2/V
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
DSP
72 mm
Outside diameter
B
37.7 mm
Width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
511 g
Weight

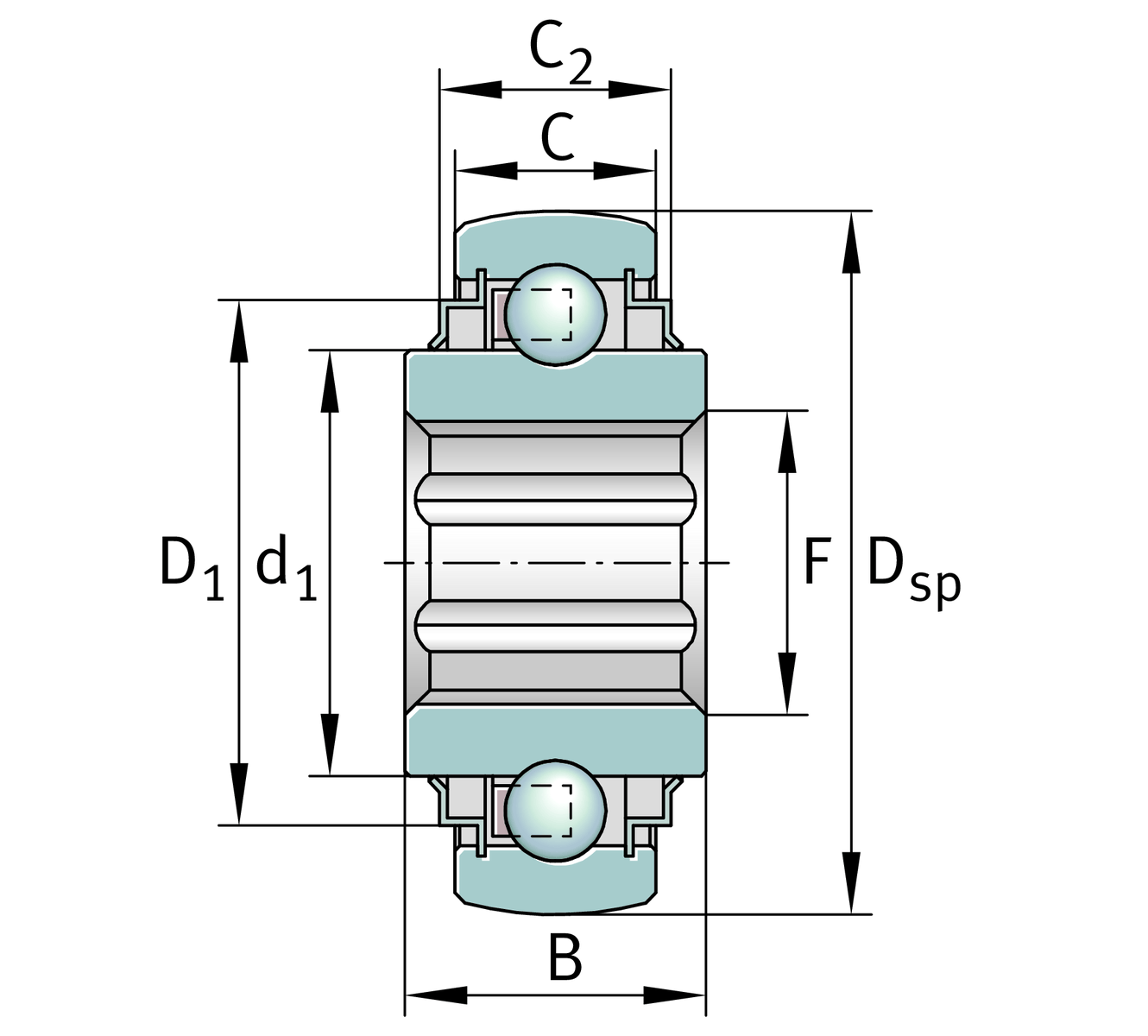

Dimensions
C
19 mm
Width, outer ring
d1
46.8 mm
Rib diameter inner ring
d
28.6 mm
Width of flats
0.15 mm
Width across flats upper tolerance
0.05 mm
Width across flats lower tolerance

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceBSpherical
Deviating featureAS2/VAS2/V
