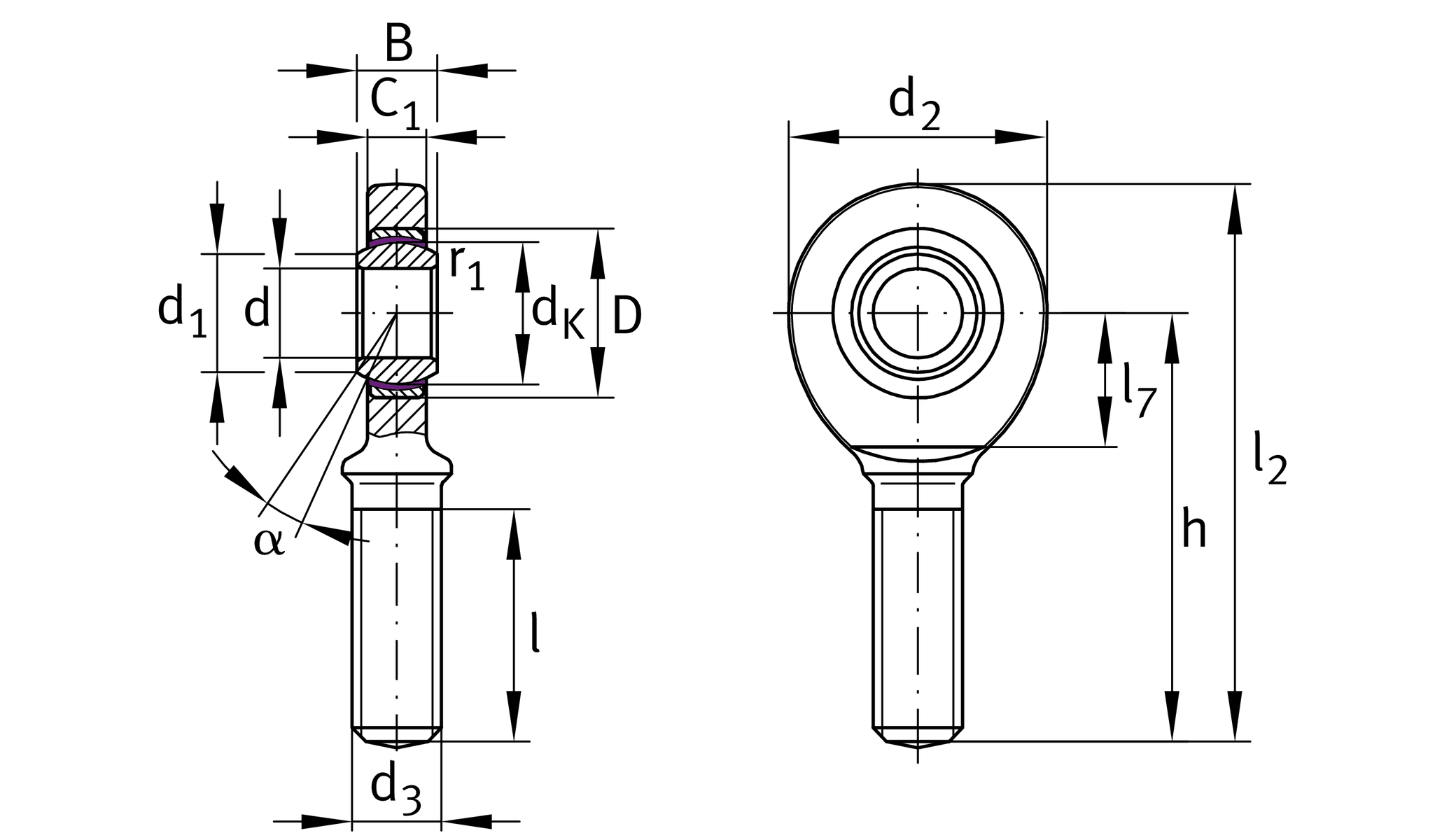

Main Dimensions & Performance Data
| d2 | 24 mm | Outer diameter eye |
| Cr | 5,850 N | Basic dynamic load rating |
| C0r | 12,900 N | Basic static load rating |
| d | 8 mm | Bore diameter bearing |
| D | 16 mm | Outside diameter bearing |
| l2 | 54 mm | Total length |
| B | 8 mm | Width inner ring |
| ≈m | 33 g | Weight |
Dimensions
| dk | 13 mm | Ball diameter |
| d1 | 10.2 mm | Outer flange diameter inner ring |
| d3 | M8 | Thread size |
| h | 42 mm | Length of thread |
| C1 | 6 mm | Width of the rod end |
| alpha | 15 ° | Tilt angle |
| l1 | 22 mm | Thread length |
| l7 | 14 mm | Length of the flat surface from the bearing bore centre to the shank |
| BUT | -0.12 mm | Width inner ring , lower tolerance |
| BOT | 0 mm | Width inner ring; upper tolerance |
| dUT | -0.008 mm | Bore diameter, lower tolerance |
| dOT | 0 mm | Bore diameter bearing upper tolerance |
| Gr | 0 - 0,032 | Radial clearance |
| Grmax | 0.032 mm | Radial clearance, maximum |
| Grmin | 0 mm | Radial clearance, minimum |
Temperature range
| Tmin | -50 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Mounting dimensions
| r1s | 0.3 mm | Smallest single chamfer dimension, inner ring |
Your current product variant
| Sealing | Without |
