Main Dimensions & Performance Data
| d2 | 135 mm | Outer diameter eye |
| Cr | 691,000 N | Basic dynamic load rating |
| C0r | 485,000 N | Basic static load rating |
| d | 60 mm | Bore diameter bearing |
| D | 90 mm | Outside diameter bearing |
| l2 | 277.5 mm | Total length |
| B | 44 mm | Width inner ring |
| ≈m | 5.91 kg | Weight |

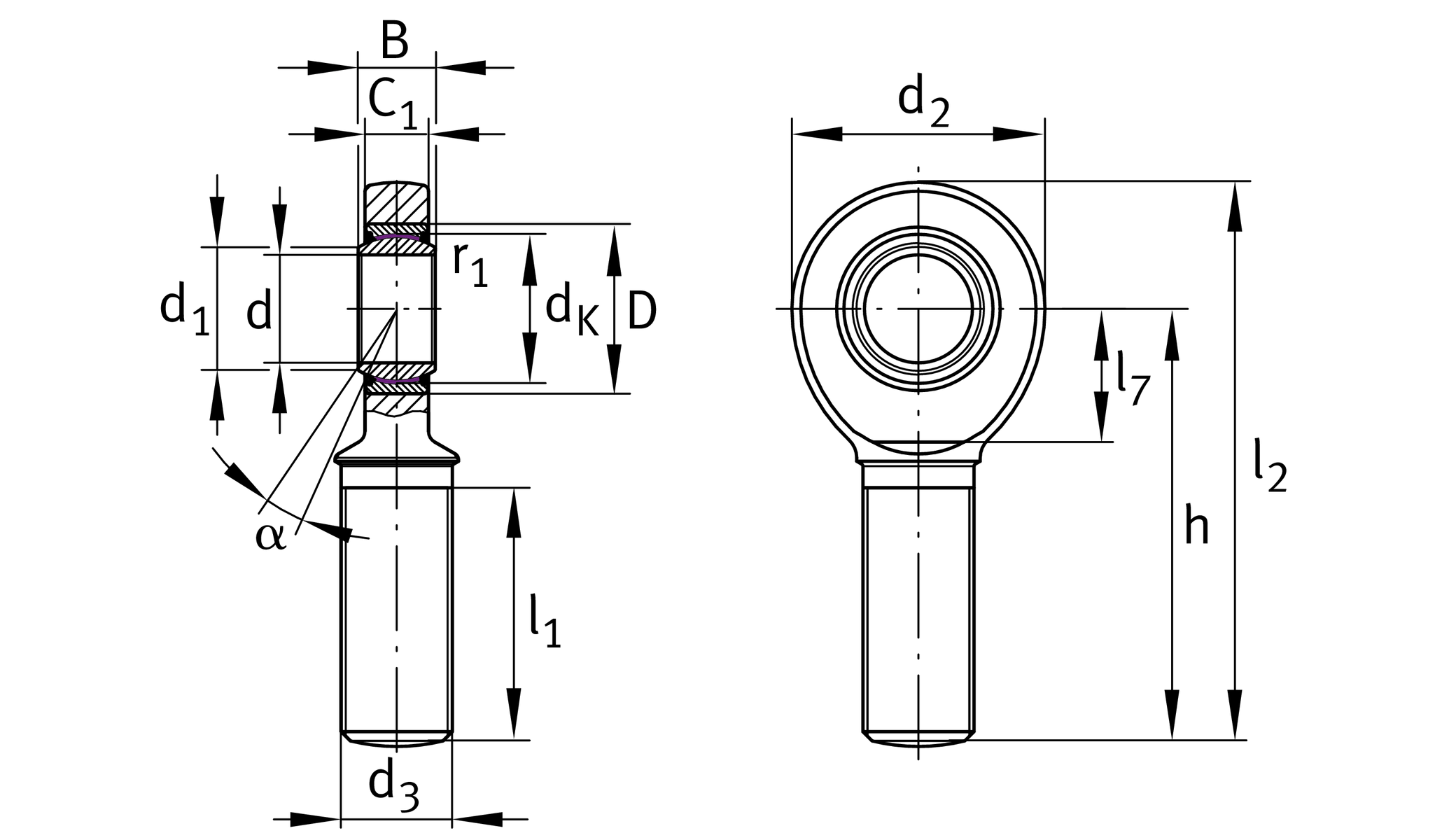

Dimensions
| dk | 80 mm | Ball diameter |
| d1 | 66.8 mm | Outer flange diameter inner ring |
| d3 | M52x3 | Thread size |
| h | 210 mm | Length of thread |
| C1 | 38 mm | Width of the rod end |
| alpha | 6 ° | Tilt angle |
| l1 | 115 mm | Thread length |
| l7 | 75 mm | Length of the flat surface from the bearing bore centre to the shank |
| BUT | -0.15 mm | Width inner ring , lower tolerance |
| BOT | 0 mm | Width inner ring; upper tolerance |
| dUT | -0.015 mm | Bore diameter, lower tolerance |
| dOT | 0 mm | Bore diameter bearing upper tolerance |
| Gr | 0 - 0,06 | Radial clearance |
| Grmax | 0.06 mm | Radial clearance, maximum |
| Grmin | 0 mm | Radial clearance, minimum |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 130 °C | Operating temperature max. |
Mounting dimensions
| r1s | 1 mm | Smallest single chamfer dimension, inner ring |
Your current product variant
| Sealing | 2RS | Lip seals on both sides |
| Material sliding Layer | ELGOGLIDE | ELGOGLIDE |
