GE55-XL-KTT-B
Radial insert ball bearing GE55-XL-KTT-B
Thêm vào yêu cầu báo giá

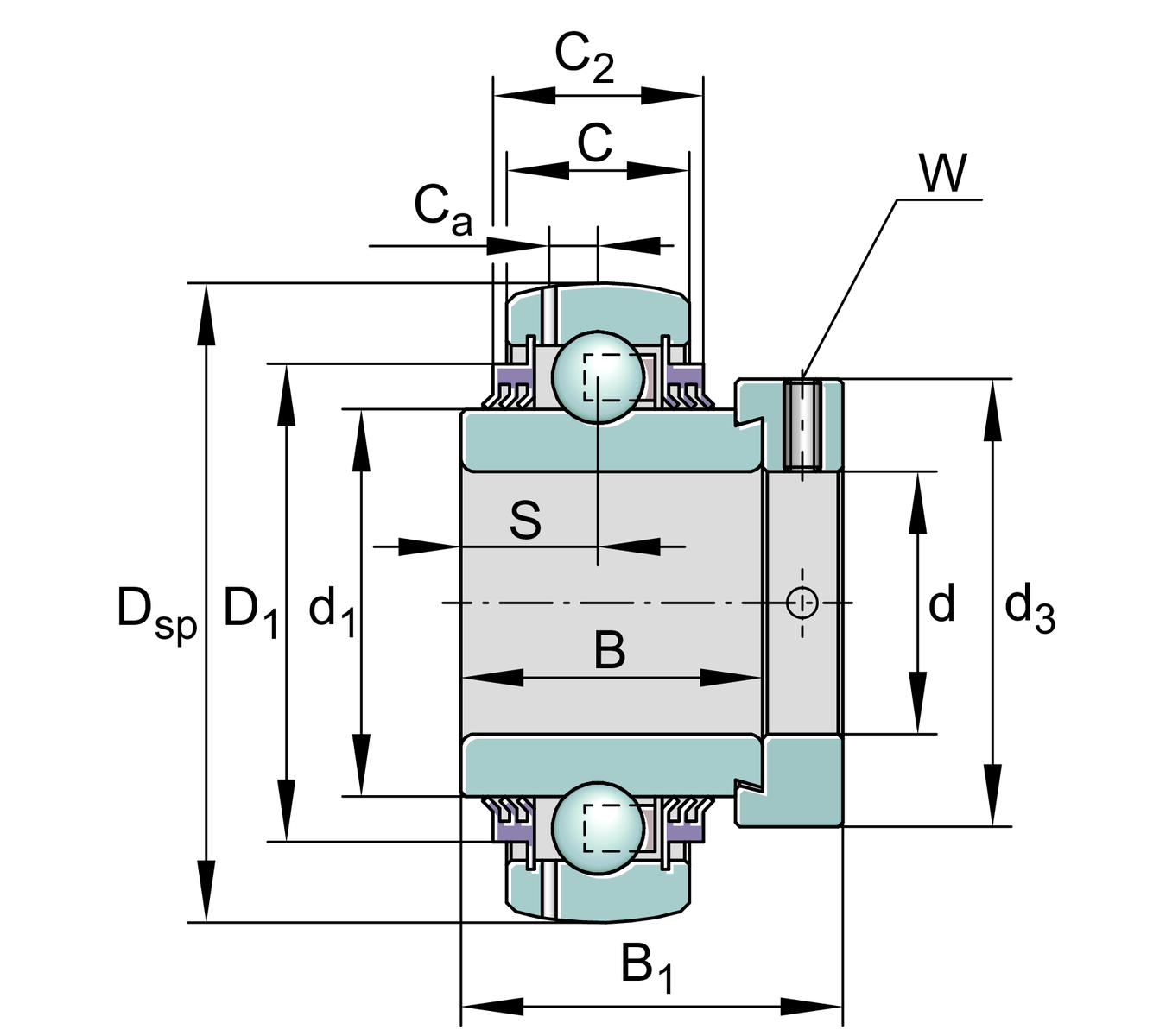

Main Dimensions & Performance Data
d
55 mm
Bore diameter
DSP
100 mm
Outside diameter
B
55.5 mm
Width
Cur
1,240 N
Fatigue load limit, radial
B1
71.4 mm
Locking collar total width
Cr
43,500 N
Basic dynamic load rating, radial
C0r
29,000 N
Basic static load rating, radial
≈m
1.37 kg
Weight

Dimensions
C
25 mm
Width, outer ring
C2
29 mm
Sealing total width
S
27.8 mm
Distance raceway
d1
69.8 mm
Rib diameter inner ring
D1
85.9 mm
Outside diameter seal
Ca
7 mm
Distance to lubrication hole
d3
76 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
14.2
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceB
