Technical data
Piston pump | Functional principle | |
| VLub | 400 cm³ | Lubricant volume |
0.16 cm³ | Metering quantity (per outlet and stroke/impulse) | |
| pop | 70 bar | Operating pressure, max. |
≤ NLGI 3 (suitability test required) | Lubricant | |
| npb | 2 | Number of pump bodies |
| nout | 4 | Number of outlets |
≤ 4 | Number of lubrication points: direct | |
≤ 8 | Number of lubrication points: with splitters | |
> 12 | Number of lubrication points: with progressive distributors | |
PA hose | Connection | |
| Uop | DC 24 V | Operating voltage |
M12 x 1, 4 pin | Connection plug for multi-function interface | |
| Imax | ≤ 350 mA | Current consumption (DC 24 V) |
PLC | Controller (extern) | |
Integrated, electronic | Monitoring: pressure | |
IP54 | Protection class | |
Polyamide | Housing material | |
| tmin | -15 °C | Operating temperature, min. |
| tmax | 60 °C | Operating temperature, max. |
vertical | Mounting position | |

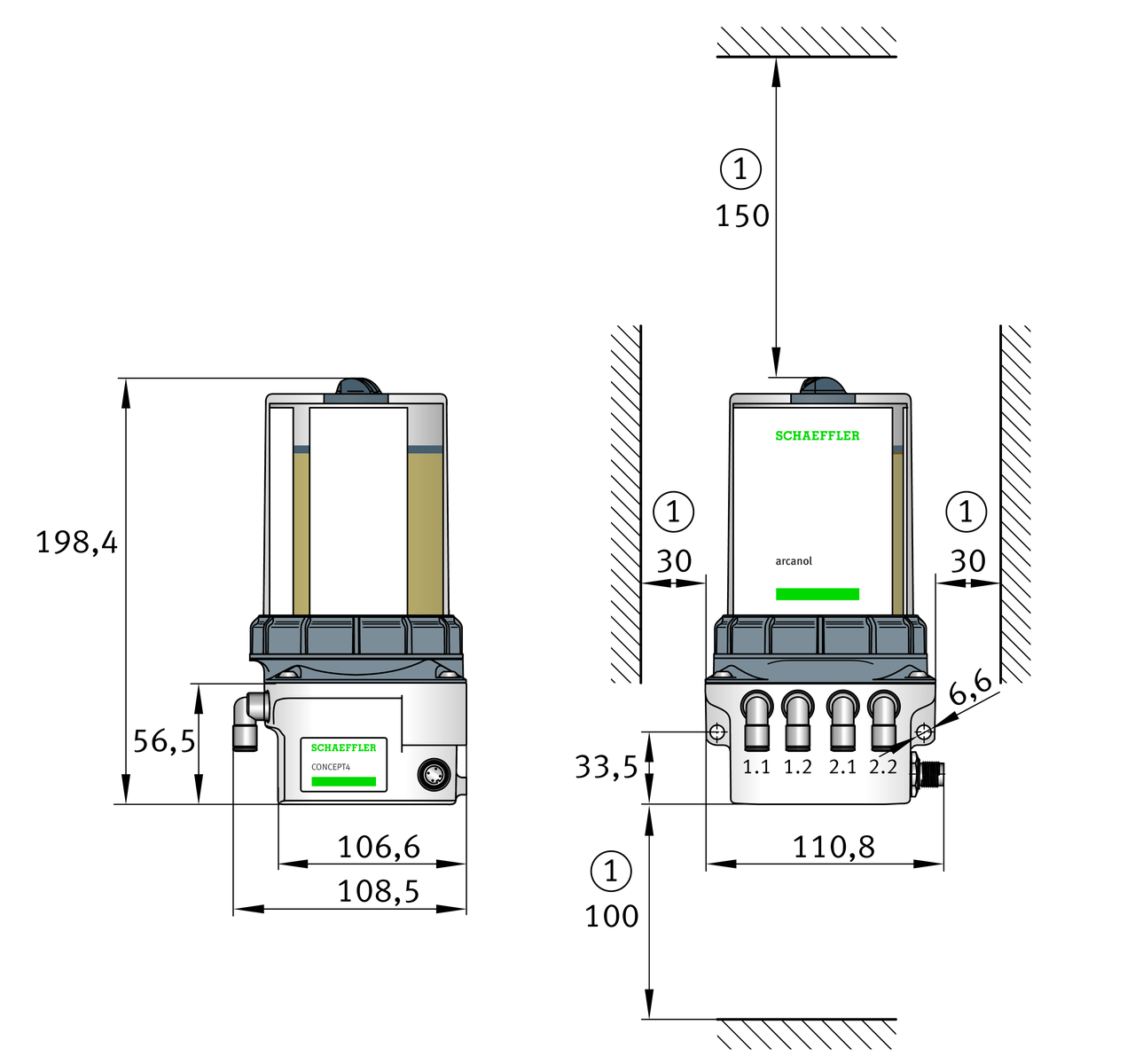

108,5 x 198,4 x 110,8 | Dimensions (mm) | |
| ≈m | 1.5 kg | Weight |
Your current product variant
| Drive System | PP | Piston pump |
| Lubricant volume | V400 | 400 cm³ |
