RTUEY65-214-XL
Take-up housing unit RTUEY65-214-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
65 mm
Bore diameter
H
166 mm
Height
L
214 mm
Length total
≈m
6.99 kg
Weight

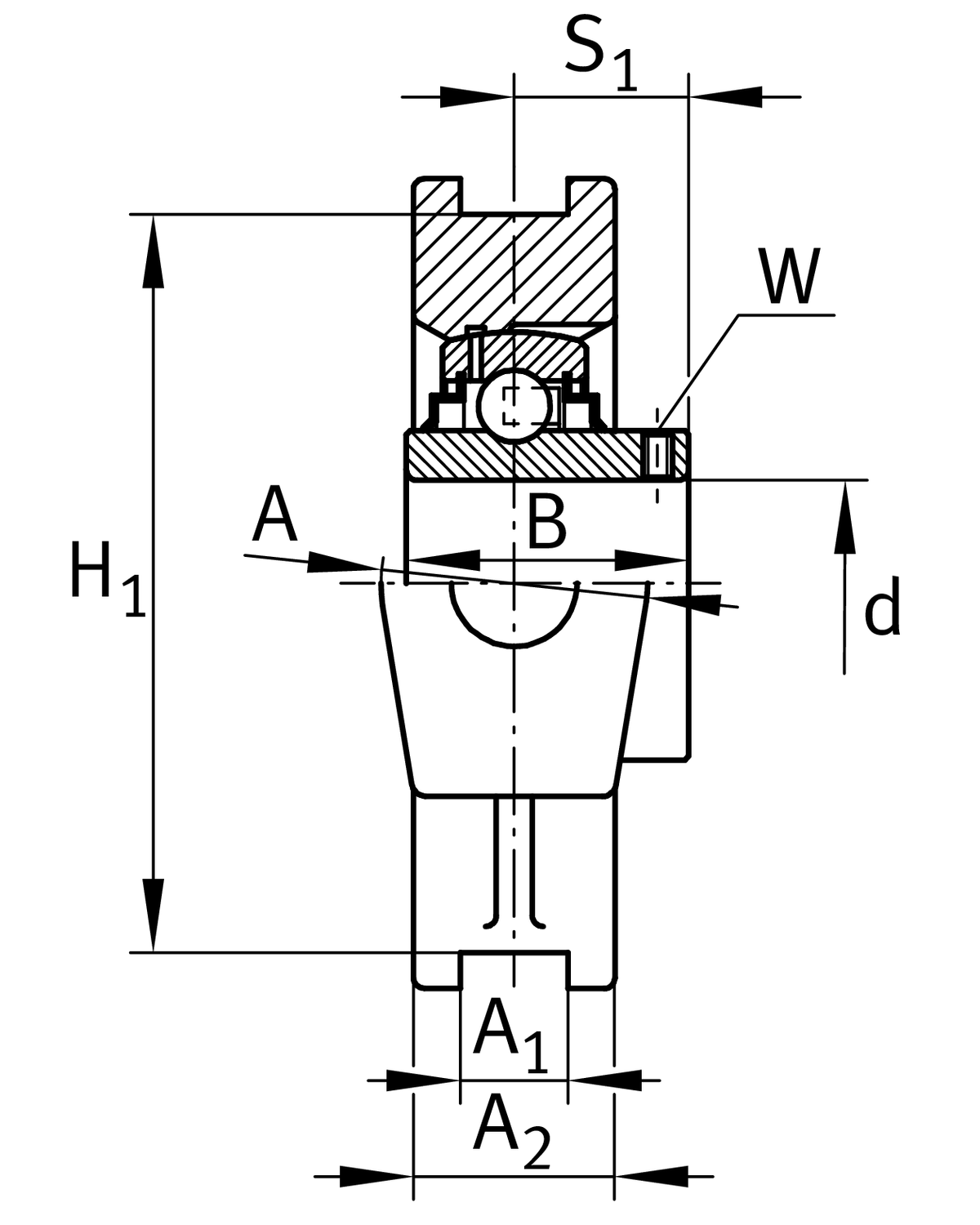

Mounting dimensions
A1
25 mm
Width guidance groove
H13
Width guidance groove clearance
H1
151 mm
Distance guidance grooves
0.25 mm
Upper distance guidance groove tolerance
-0.25 mm
Lower distance guidance groove tolerance
N
41 mm
Fixing bore

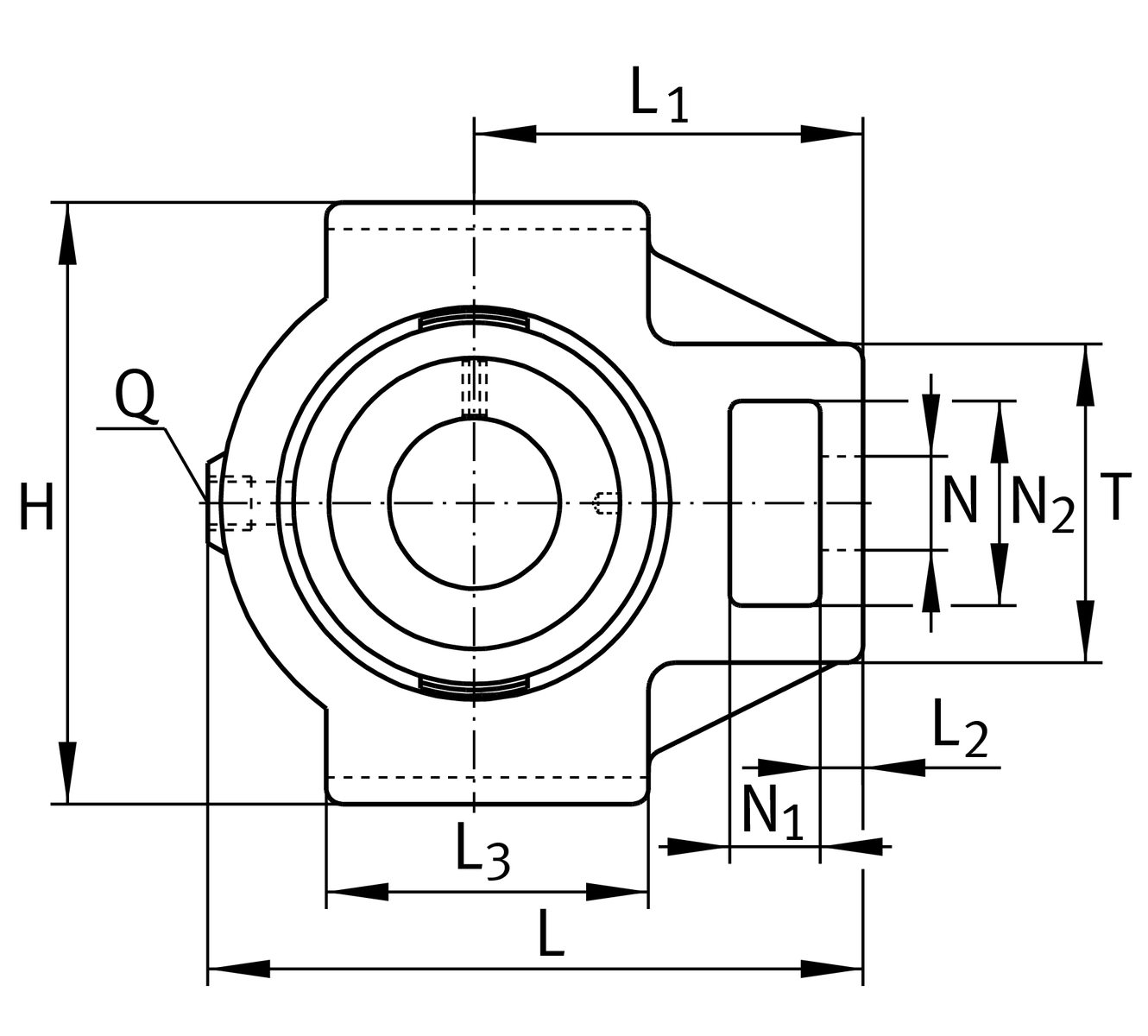

Dimensions
L1
135 mm
Distance shaft axis
L2
20 mm
Length fixed link
L3
120 mm
Length guidance groove
A
70 mm
Width housing fixing side
N1
35 mm
Width recess
N2
70 mm
Height recess
B
74.6 mm
Width inner ring
S1
44.4 mm
Distance of raceway to locking collar
T
110 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
50 mm
Width housing

Additional information
TUE13/14
Housing
GYE65-214-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
Deviating ballset214Deviating ballset 214
MaterialGGGrey cast iron
