RCJY65-214-XL
Flanged housing unit RCJY65-214-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
65 mm
Bore diameter
L
188 mm
Flange width
U
82.4 mm
Total height unit
Cr
66,000 N
Basic dynamic load rating, radial
C0r
44,000 N
Basic static load rating, radial
Cur
1,870 N
Fatigue load limit, radial
≈m
5.86 kg
Weight

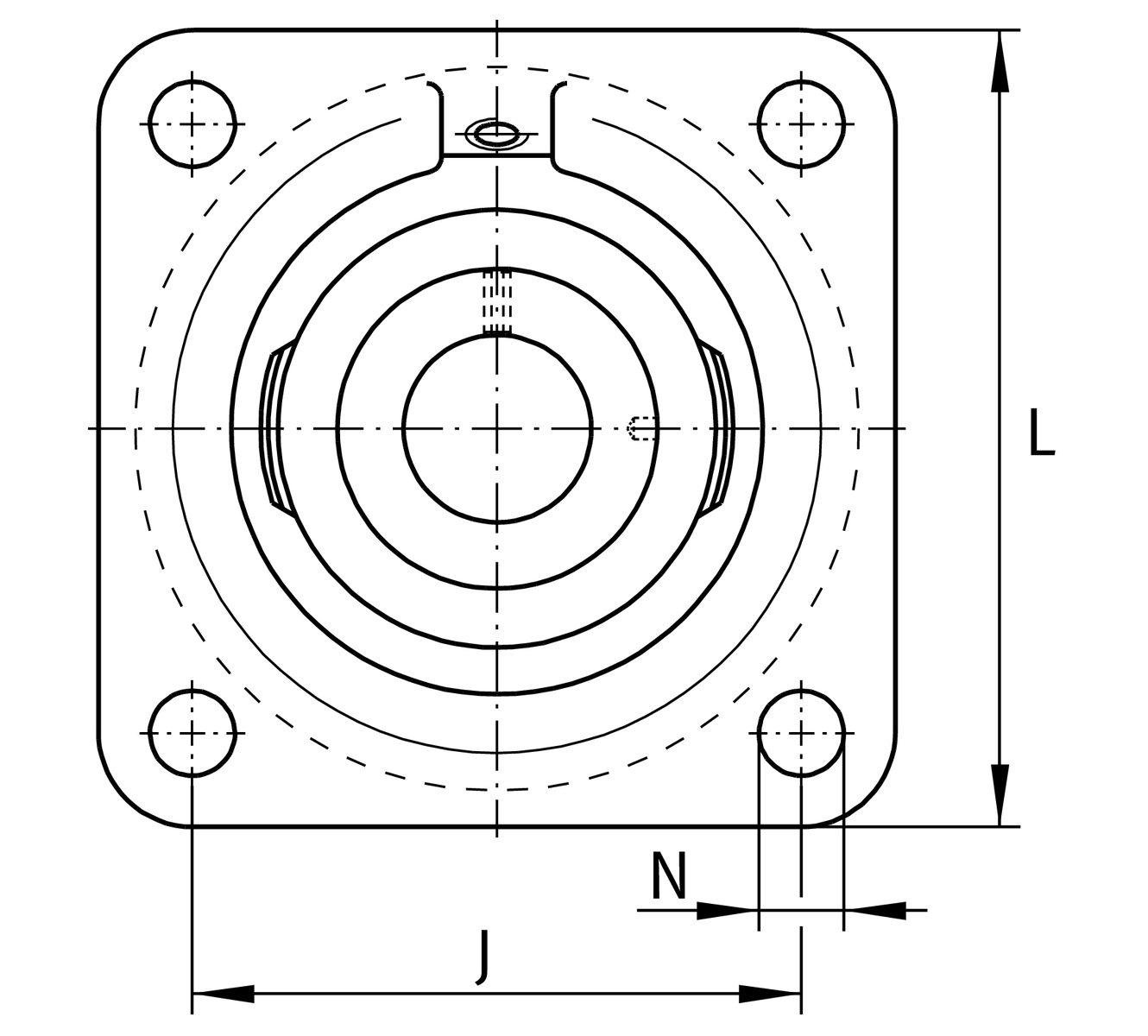

Mounting dimensions
J
150 mm
Distance fixing bore
N
18 mm
Fixing bore
n
4
Number of screwing holes

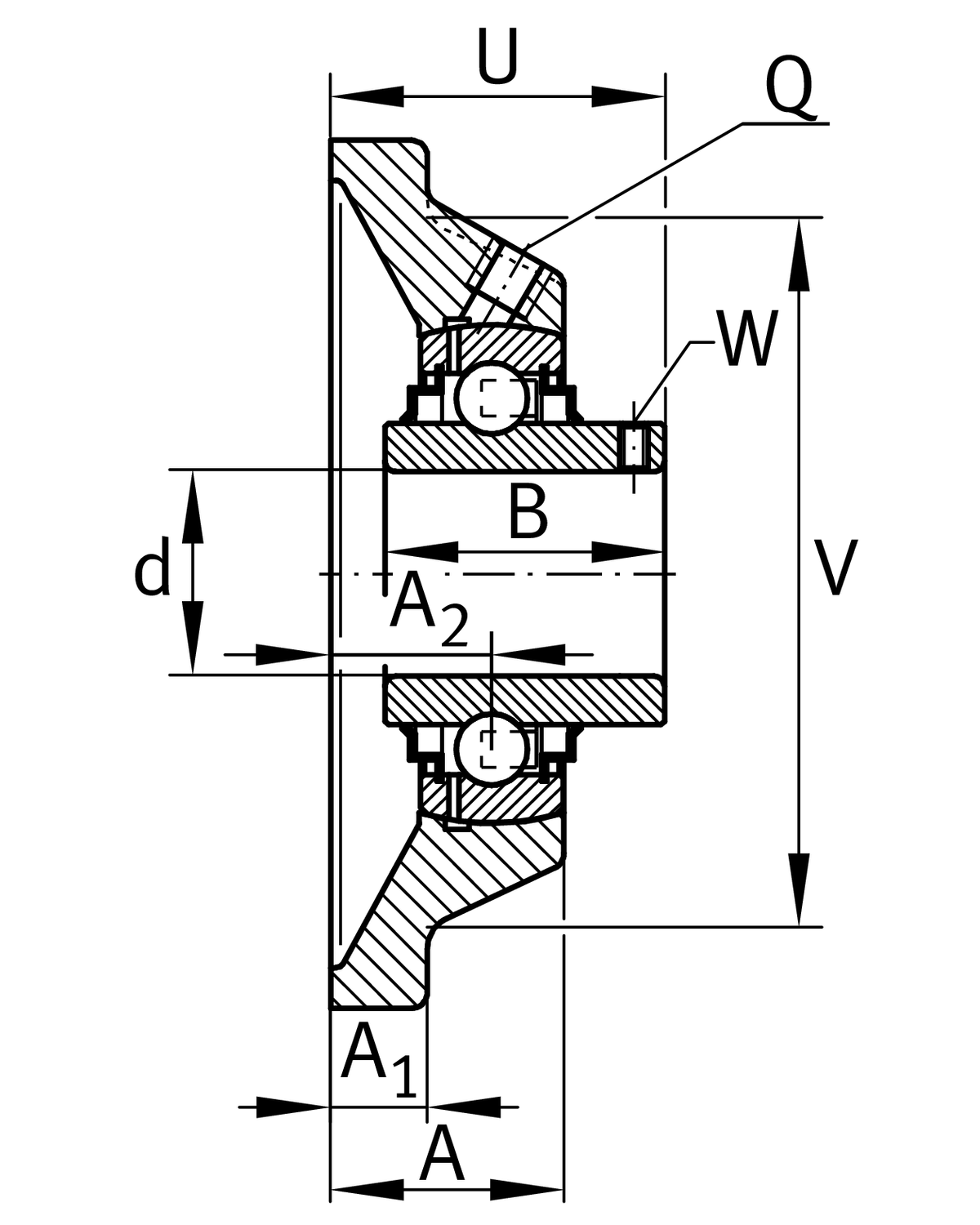

Dimensions
A
52 mm
Height housing
A1
18 mm
Thickness of flange
A2
38 mm
Distance raceway
B
74.6 mm
Width
V
165 mm
Shoulder diameter housing
Q
Rp1/8
Connection thread for lubrication

Additional information
1
Number of housings
CJ14
Housing
GYE65-214-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
