FAG INA Schaeffler
INA
AM60
Precision locknut AM60
Thêm vào yêu cầu báo giá

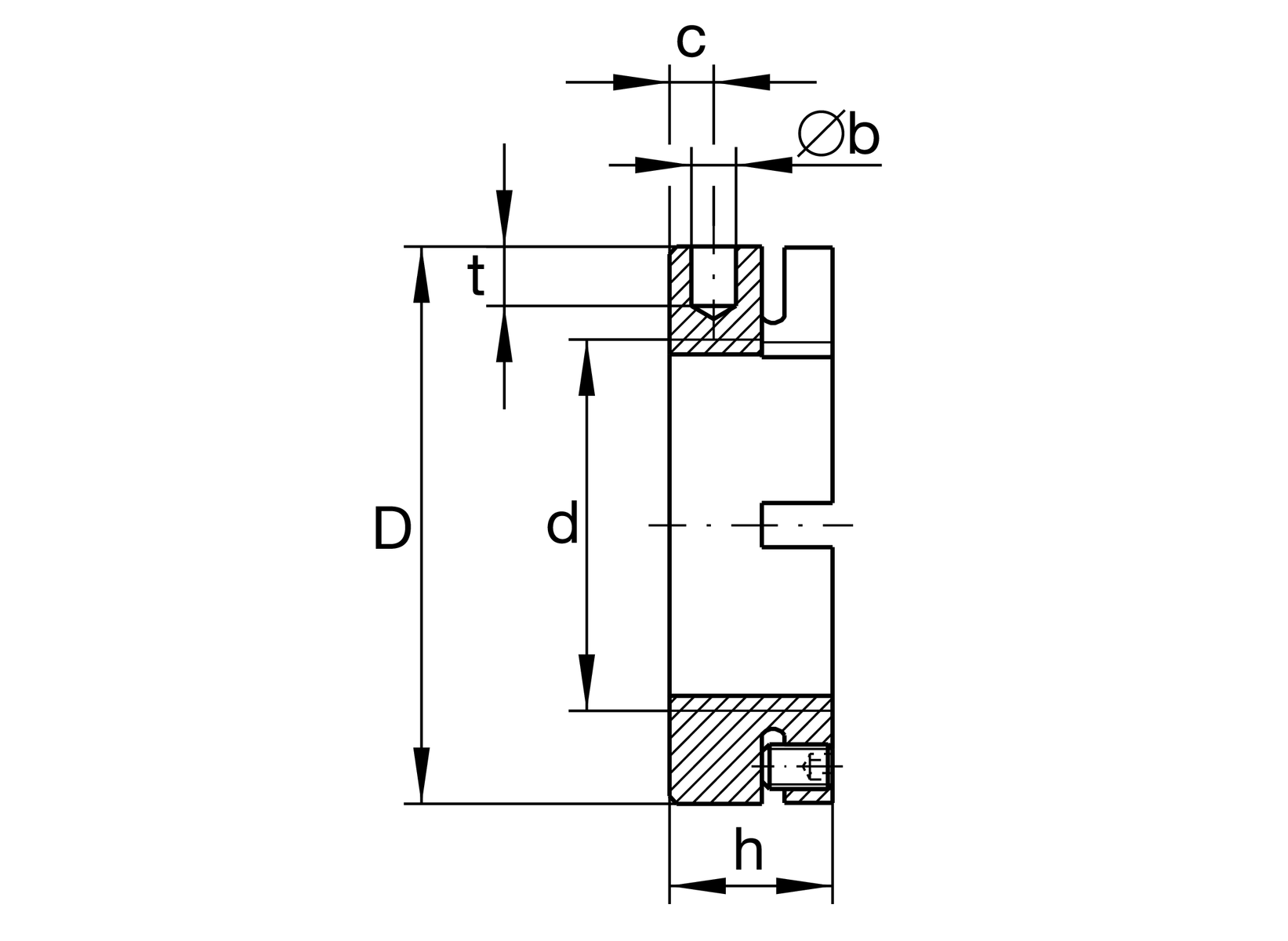

Main Dimensions & Performance Data
d
M60X2
Thread
D
90 mm
Outside diameter
h
26 mm
Height
FaB
550,000 N
Breaking load, axial
ML
365 Nm
Breakawag
MAL
100 Nm
Mounting torque reference
Mm
9.4 kg*cm2
Mass moment of inertia
≈m
650 g
Weight

Mounting dimensions
Mm
15 Nm
Mounting torque set screw

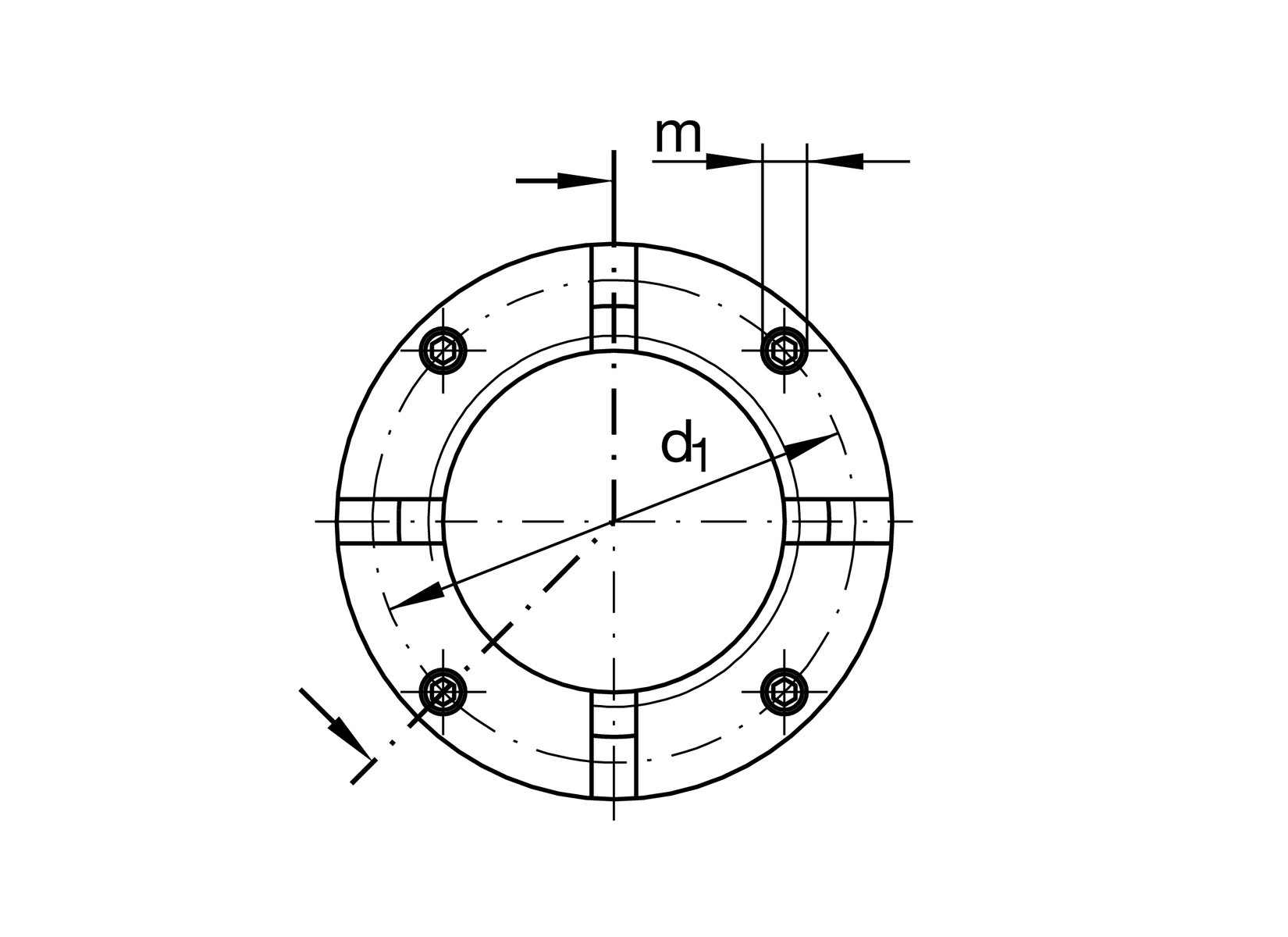

Dimensions
b
6 mm
Bore diameter blind hole
t
8 mm
Depth blind hole
d1
80 mm
Pitch circle diameter 1 (holes)
c
8 mm
Distance bore
m
M8
Threaded - threaded pin
H11
Bore diameter blind hole housing fit
