Main Dimensions & Performance Data
| d | 80 mm | Bore diameter |
| Ew | 116.99 mm | Outer envelope circle |
| B | 34 mm | Width |
| Cr | 193,000 N | Basic dynamic load rating, radial |
| C0r | 220,000 N | Basic static load rating, radial |
| Cur | 41,500 N | Fatigue load limit, radial |
| nG | 3,200 1/min | Limiting speed |
| ≈m | 0.97 kg | Weight |

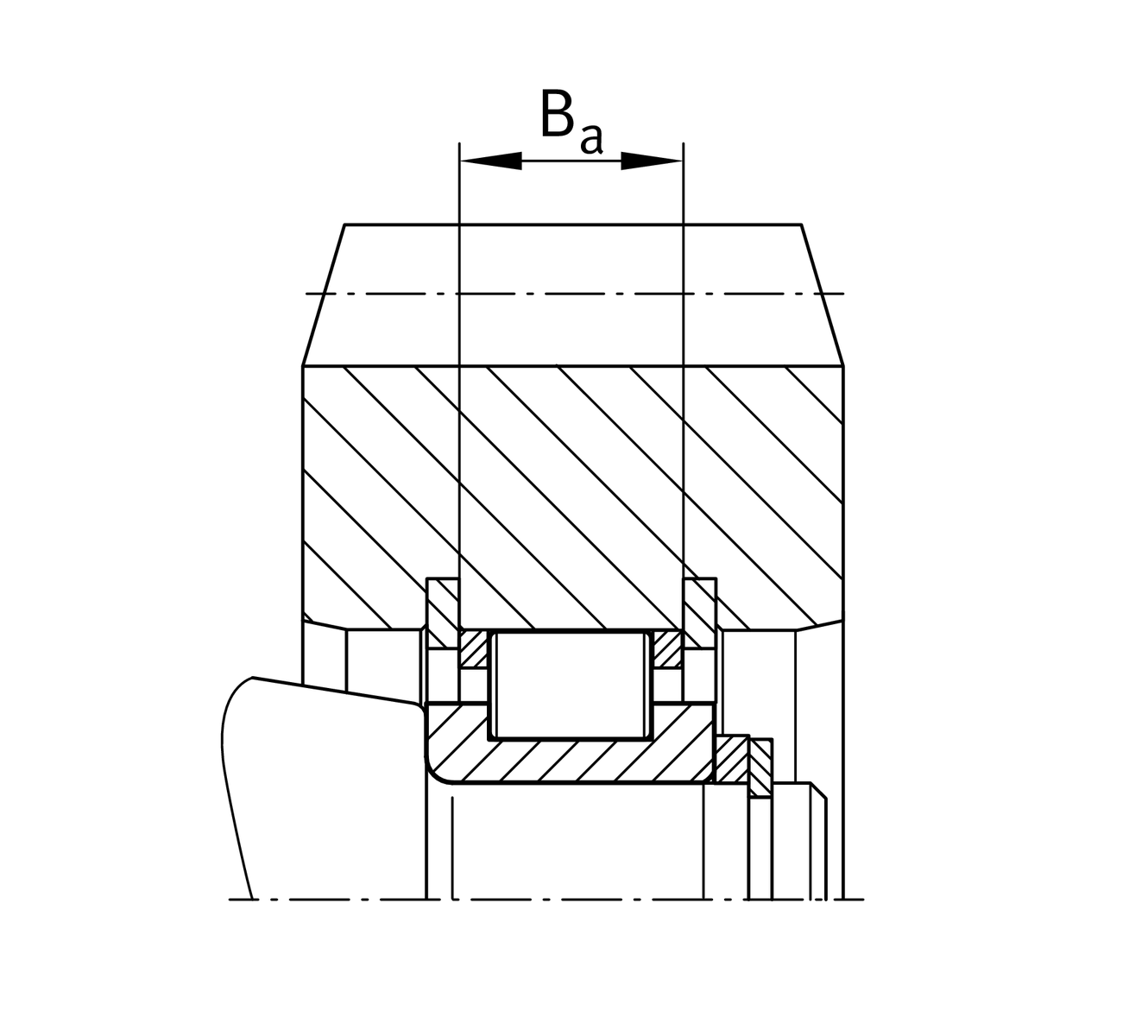

Mounting dimensions
| da min | 95 mm | Minimum diameter shaft shoulder |
| X | 20 mm | raceway width |

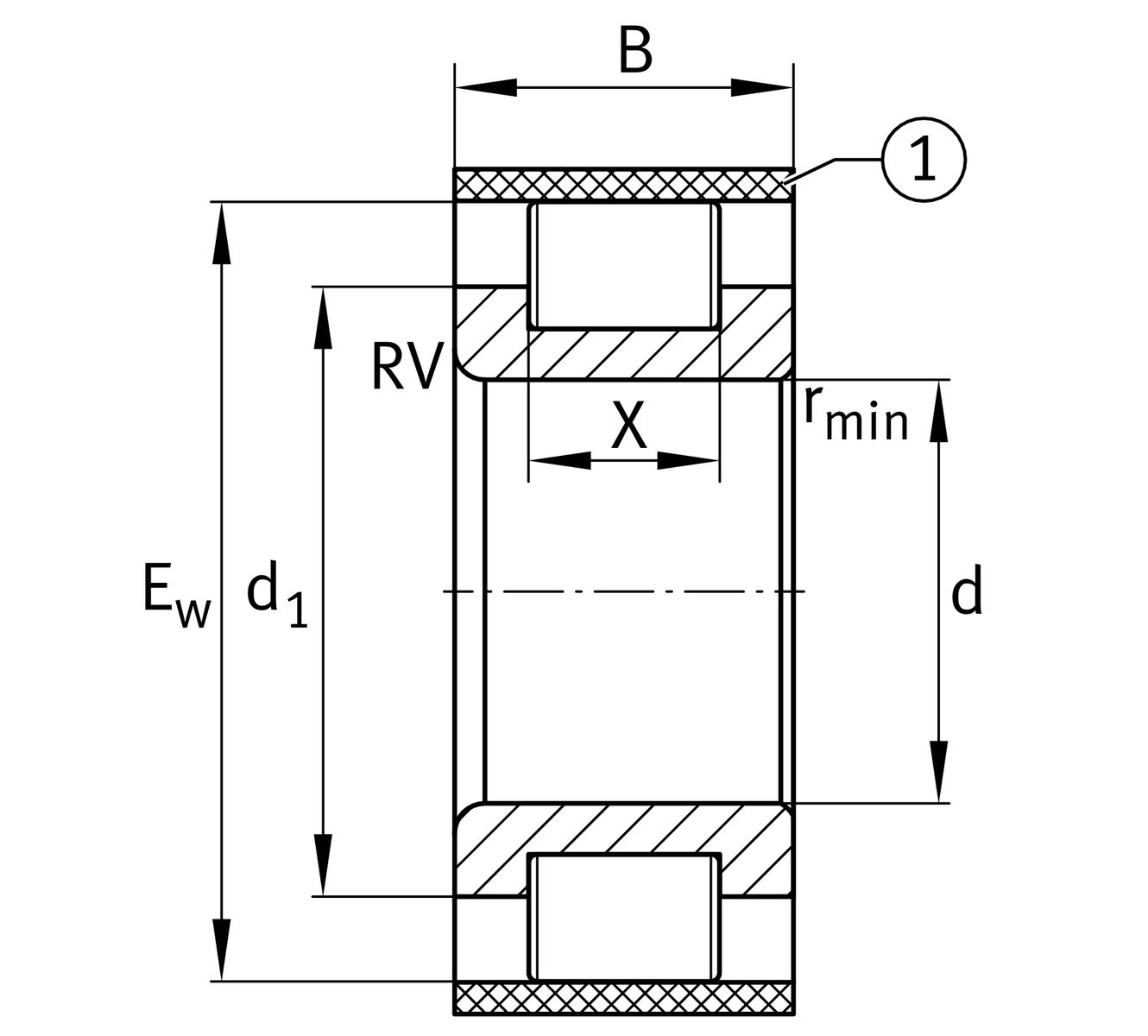

Dimensions
| rmin | 1.1 mm | Minimum chamfer dimension |
| d1 | 95 mm | Maximum rib diameter inner ring |
| TK | 102.99 mm | pitch circle |
| RV | 5,50 | edge radius |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Design variant | RV | with edge radius |
| Number of rolling element rows | 1 | Single-row design |
