Main Dimensions & Performance Data
| d | 55 mm | Bore diameter |
| D | 100 mm | Outside diameter |
| B | 25 mm | Width |
| Cr | 27,000 N | Basic dynamic load rating, radial |
| C0r | 10,000 N | Basic static load rating, radial |
| Cur | 630 N | Fatigue load limit, radial |
| nG | 3,900 1/min | Limiting speed |
| ≈m | 0.792 kg | Weight |

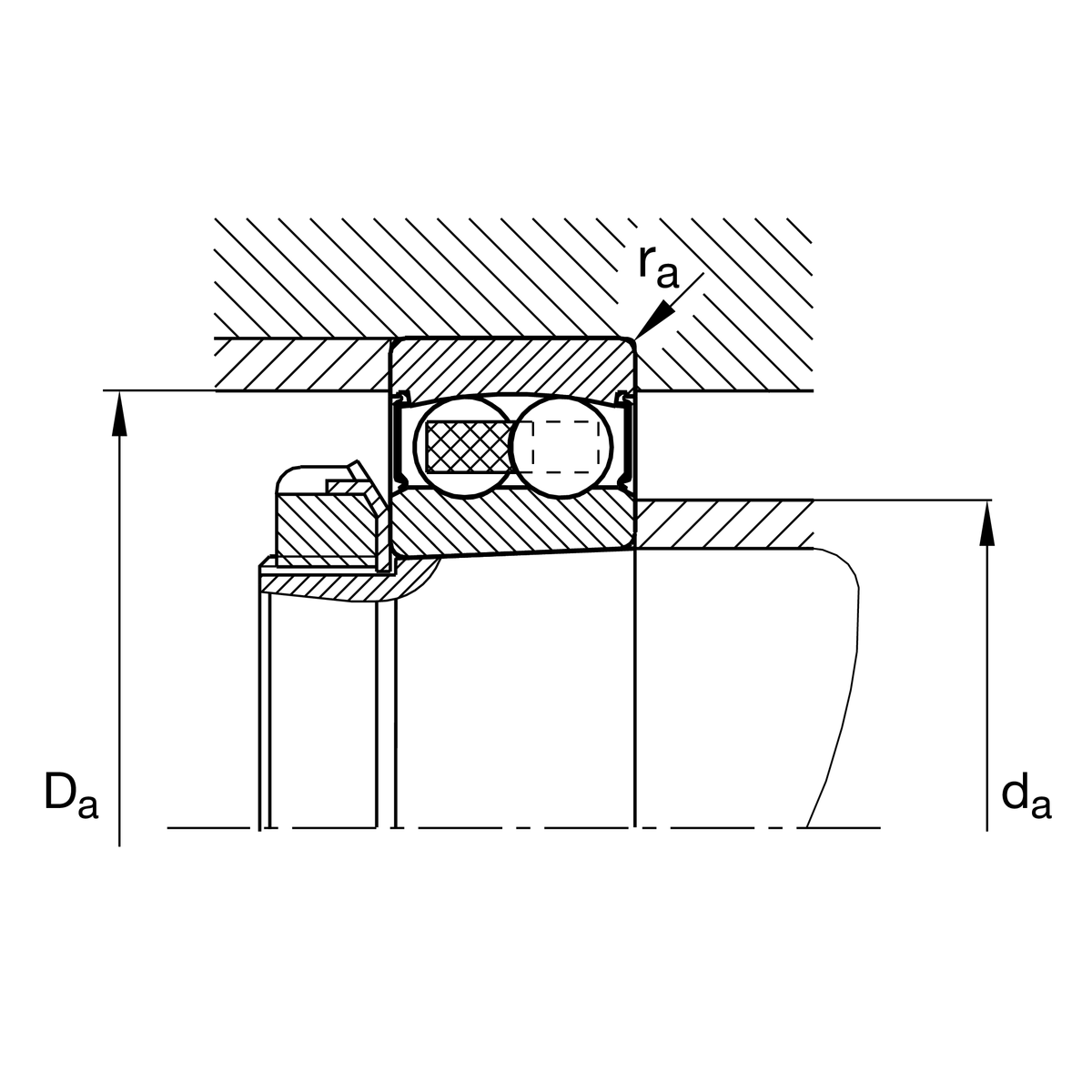

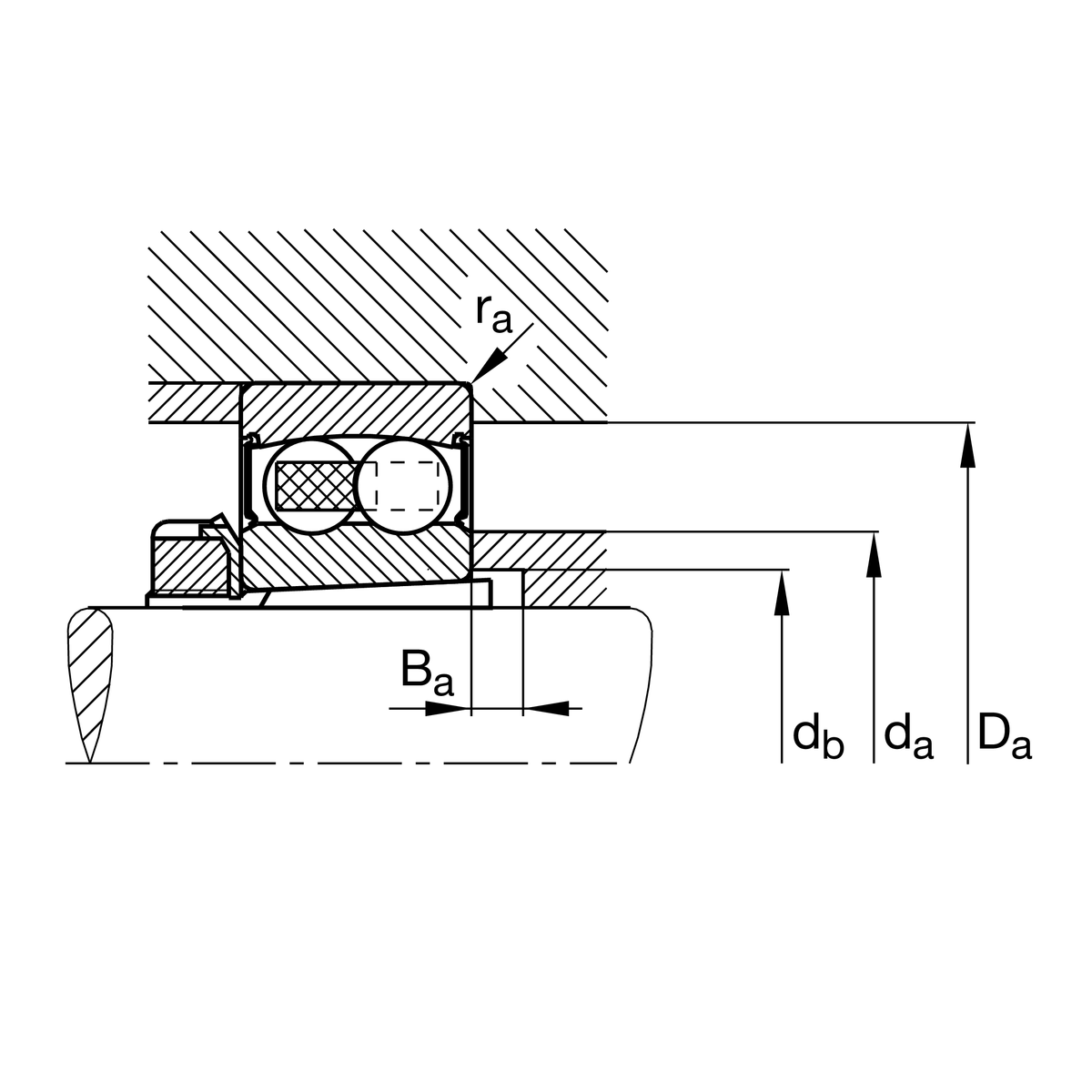

Mounting dimensions
| da min | 64 mm | Minimum diameter shaft shoulder |
| da max | 69 mm | Maximum diameter shaft shoulder |
| Da max | 91 mm | Maximum diameter of housing shoulder |
| db min | 60 mm | Minimum cavity diameter of the sleeve |
| Ba min | 10 mm | Minimum cavity width of the sleeve |
| ra max | 1.5 mm | Maximum fillet radius |

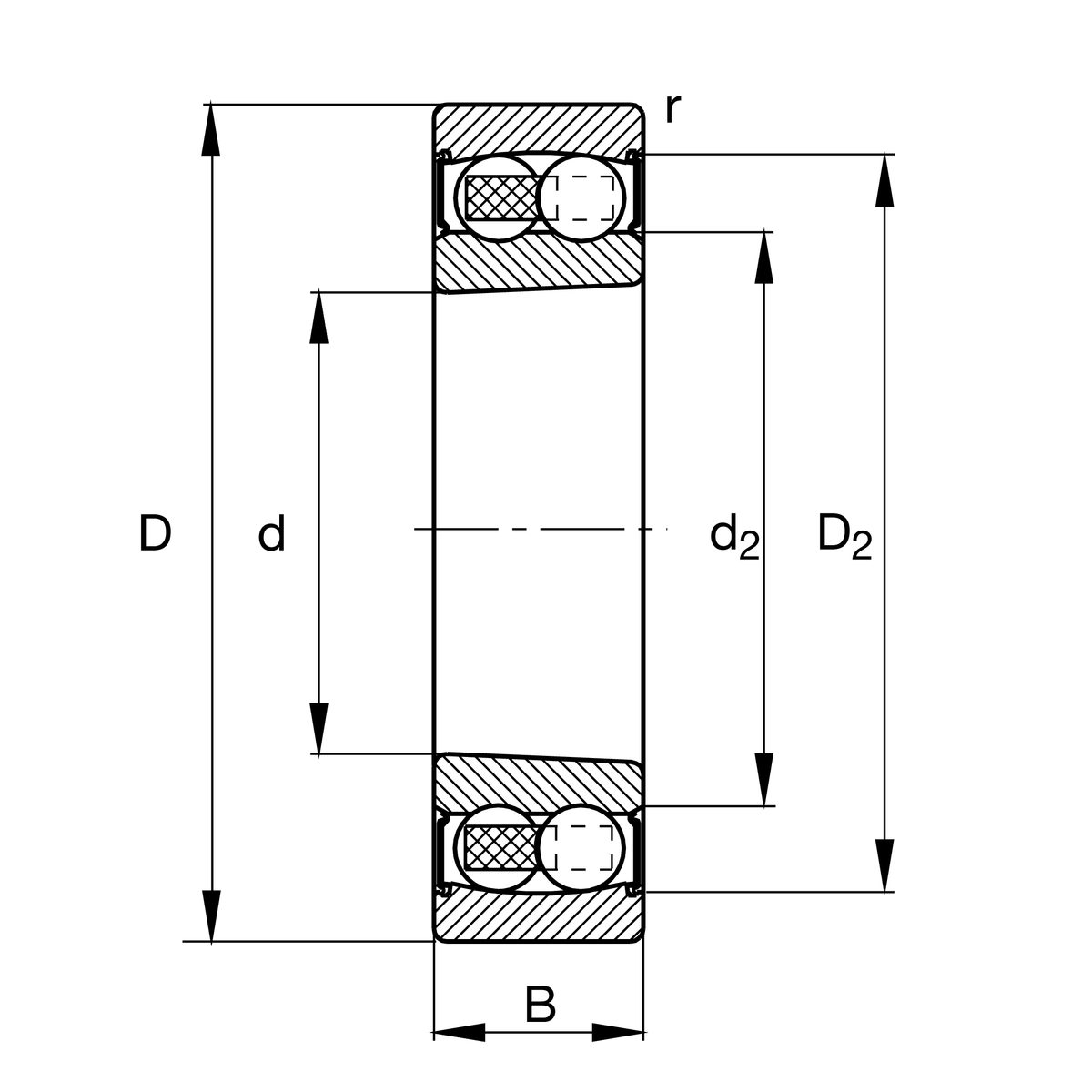

Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| D1 | 86.44 mm | Shoulder diameter outer ring |
| D2 | 88.21 mm | Caliber diameter outer ring |
| d1 | 69.8 mm | Shoulder diameter inner ring |
| d2 | 67.95 mm | Caliber diameter inner ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Calculation factors
| e | 0.19 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 3.32 | Dynamic axial load factor |
| Y2 | 5.15 | Dynamic axial load factor |
| Y0 | 3.48 | Static axial load factor |
Additional information
H311 | Adapter sleeve |
Your current product variant
| Bore type | K | Tapered, taper 1:12 |
| Sealing | 2RS | Contact seal on both sides |
| Cage | TVH | solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | PN | Normal (PN) |
| Lubricant | GA13 | Ball bearing and insert bearing grease, standard for D>62mm |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
