RNAO15X23X13-XL
Needle roller bearing RNAO15X23X13-XL
Thêm vào yêu cầu báo giá

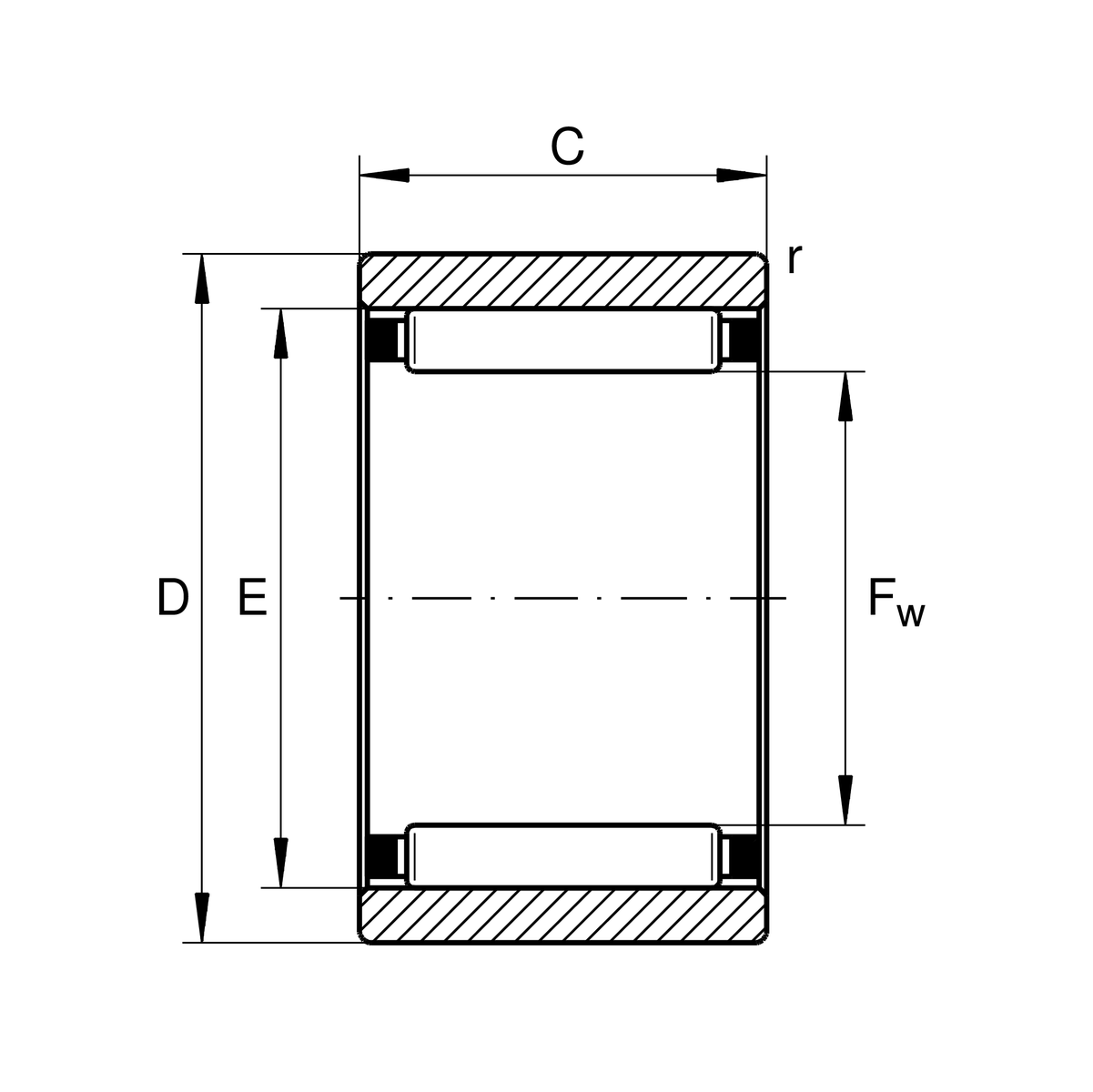

Main Dimensions & Performance Data
Fw
15 mm
Under roller diameter
D
23 mm
Outside diameter
C
13 mm
Width, outer ring
Cr
9,700 N
Basic dynamic load rating, radial
C0r
10,900 N
Basic static load rating, radial
Cur
1,790 N
Fatigue load limit, radial
nG
24,300 1/min
Limiting speed
nϑr
17,900 1/min
Reference speed
≈m
20 g
Weight

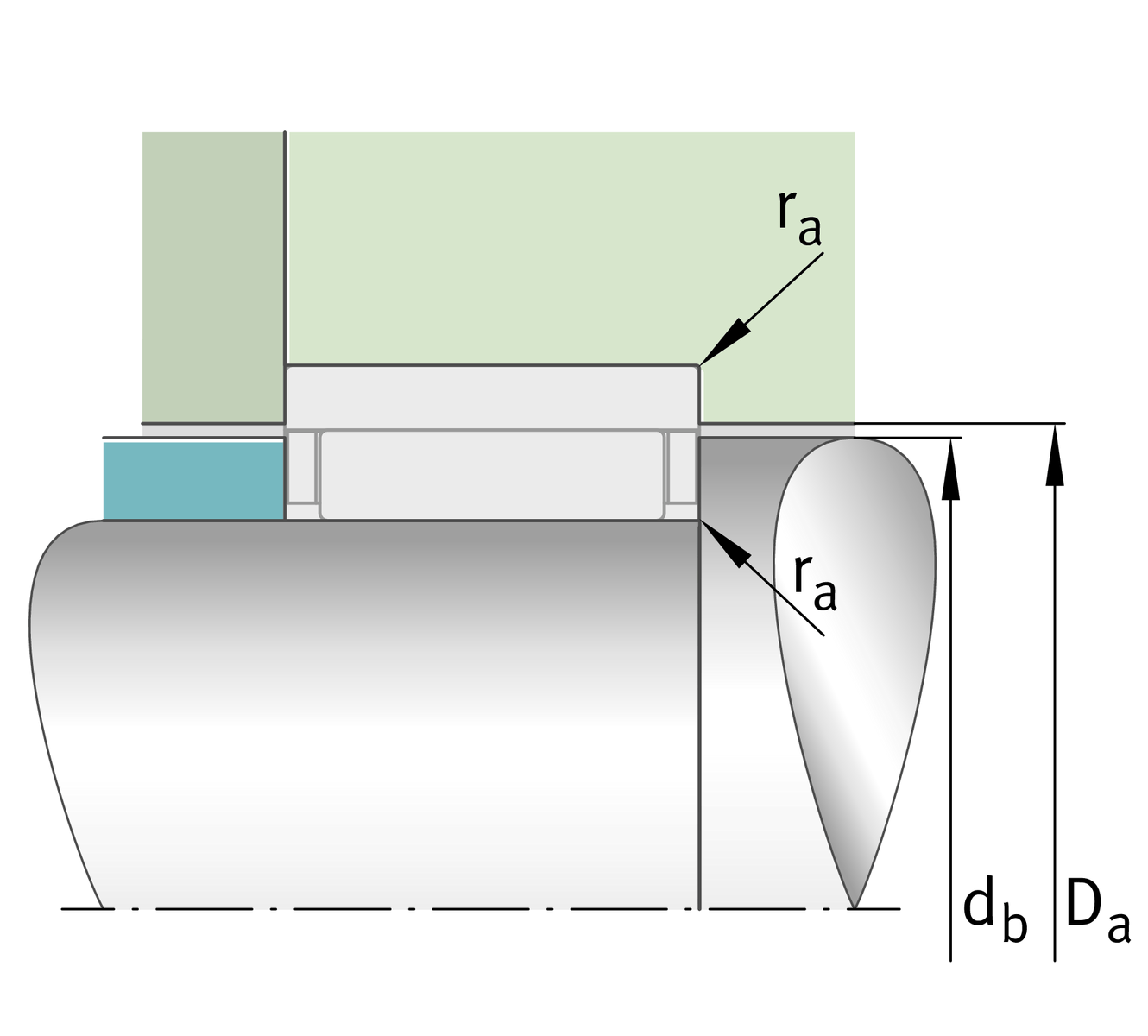

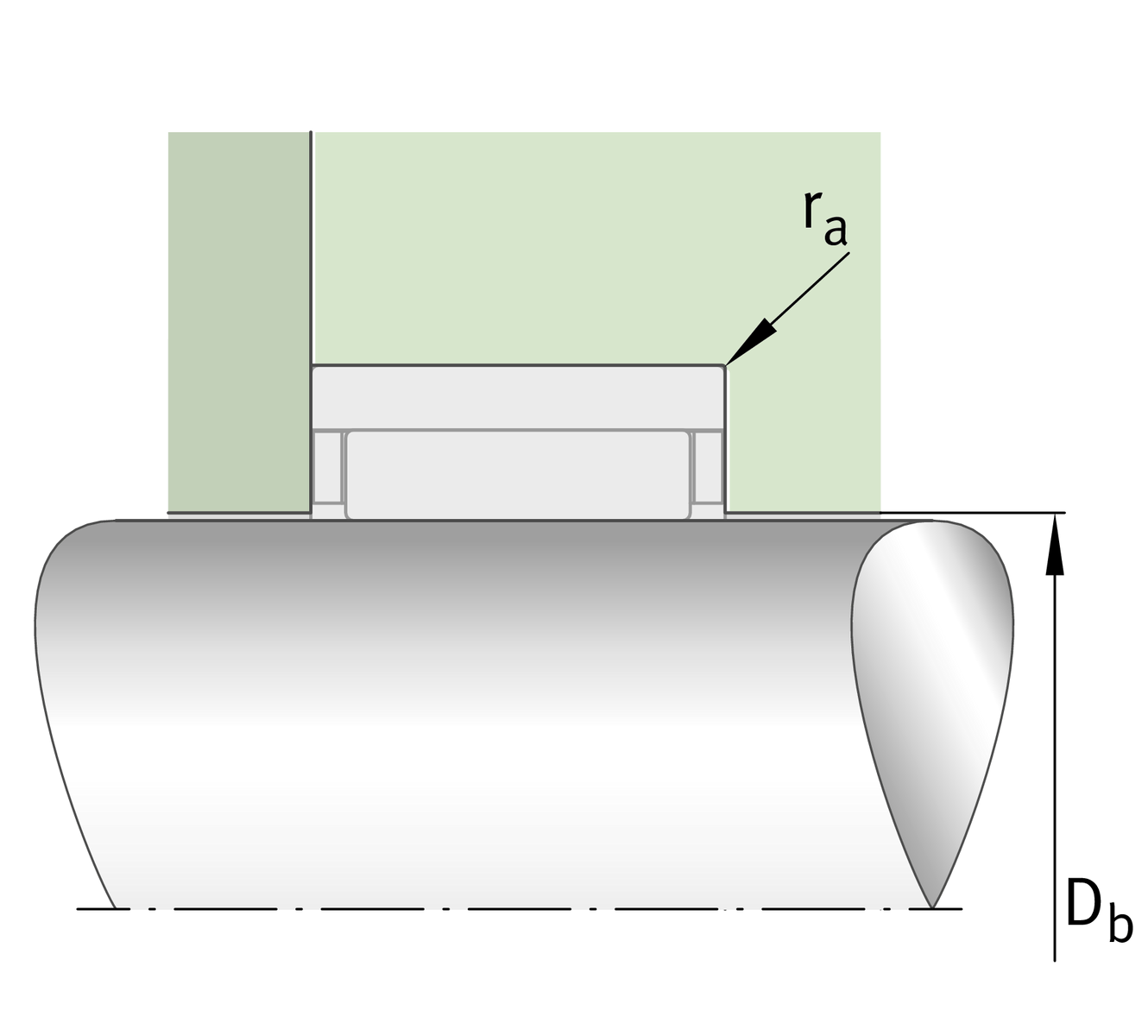

Mounting dimensions
Db
15.4 mm
Shoulder diameter axial guidance NK/housing
db
18.6 mm
Shoulder diameter axial guidance NK/shaft
Da
19.3 mm
Shoulder diameter outer ring
ra max
0.3 mm
Maximum recess radius

Dimensions
E
19 mm
Raceway diameter outer ring
rmin
0.3 mm
Minimum chamfer dimension

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
CageStandard
