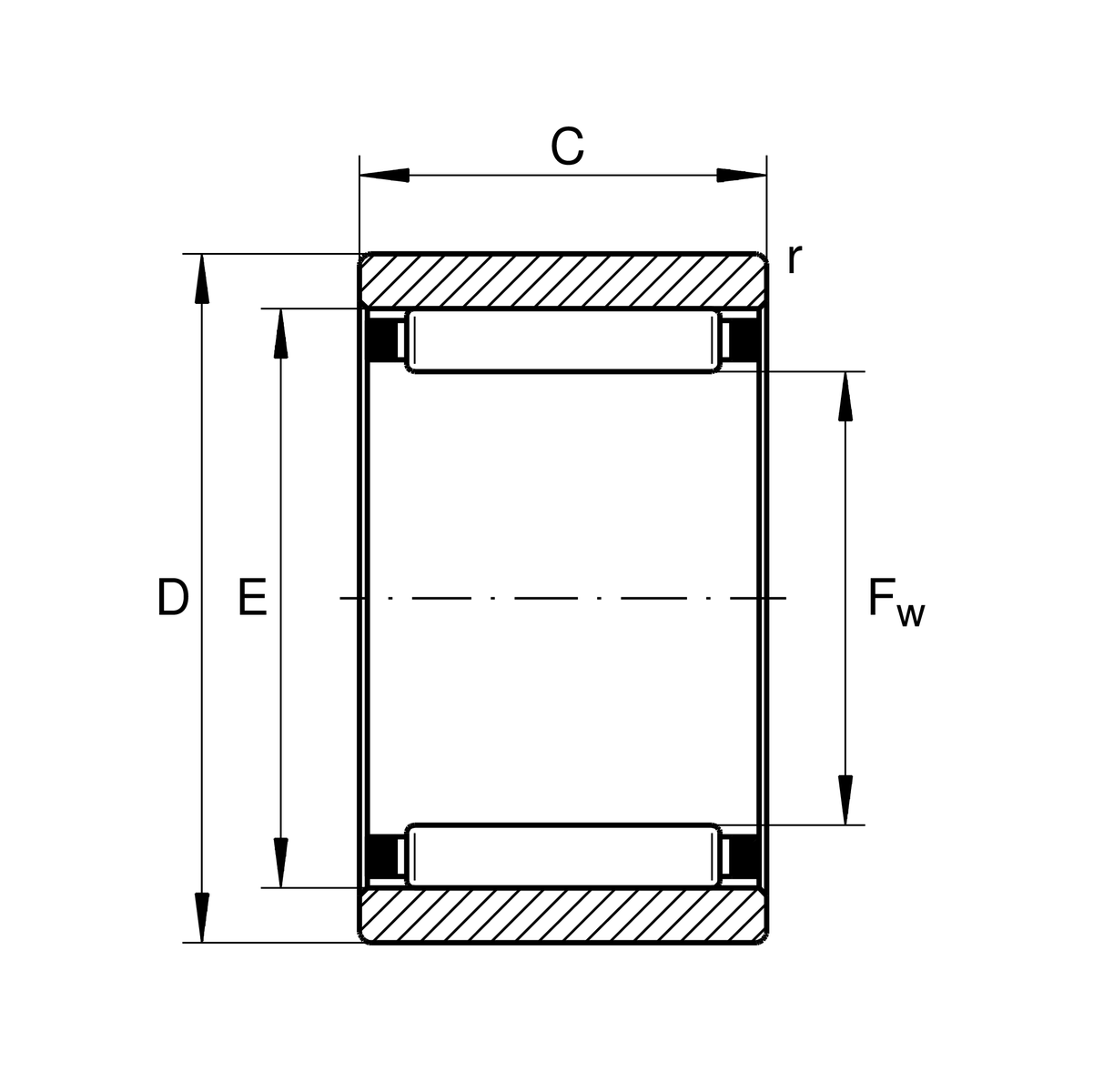

Main Dimensions & Performance Data
| Fw | 8 mm | Under roller diameter |
| D | 15 mm | Outside diameter |
| C | 10 mm | Width, outer ring |
| Cr | 4,450 N | Basic dynamic load rating, radial |
| C0r | 4,100 N | Basic static load rating, radial |
| Cur | 700 N | Fatigue load limit, radial |
| nG | 32,500 1/min | Limiting speed |
| nϑr | 35,500 1/min | Reference speed |
| ≈m | 8 g | Weight |

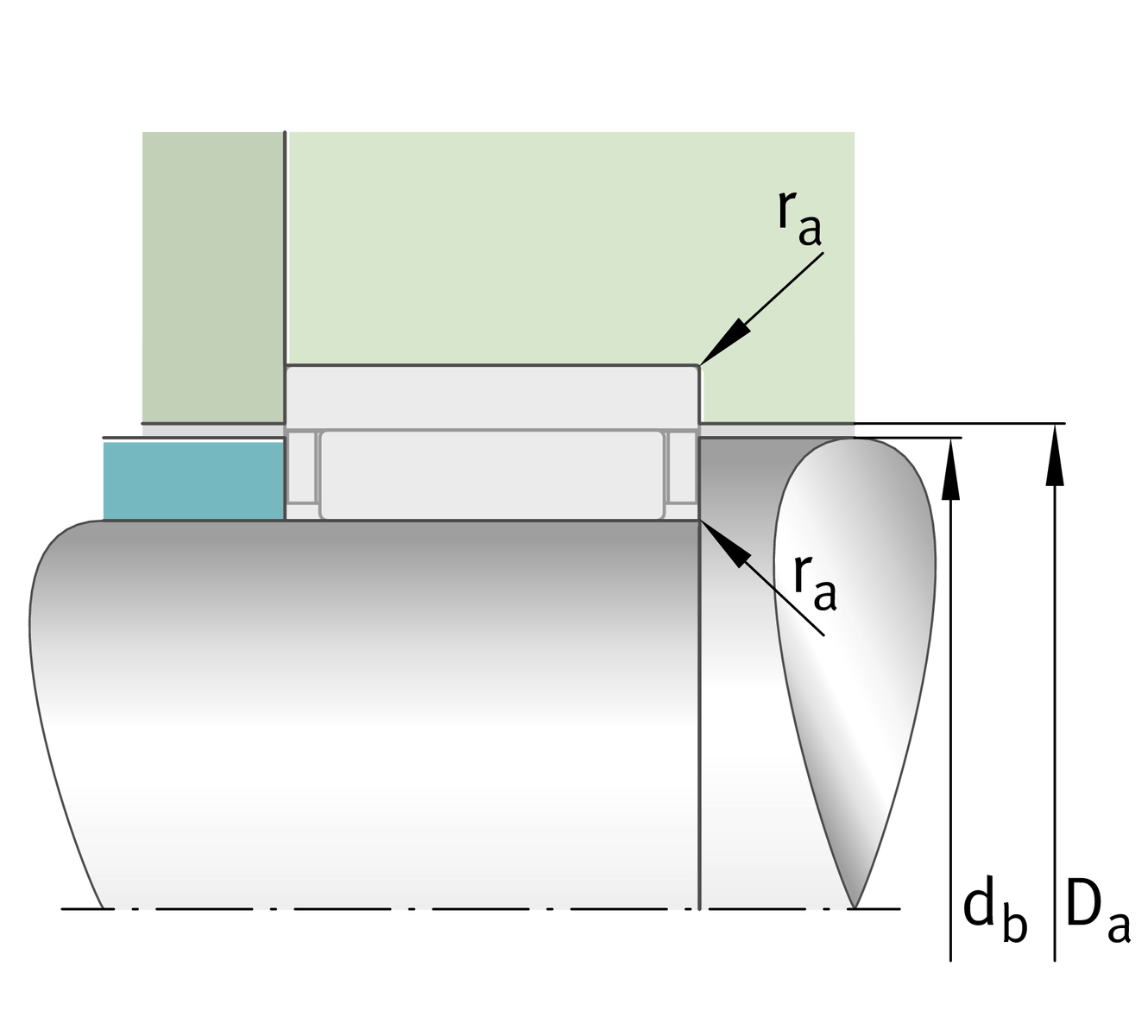

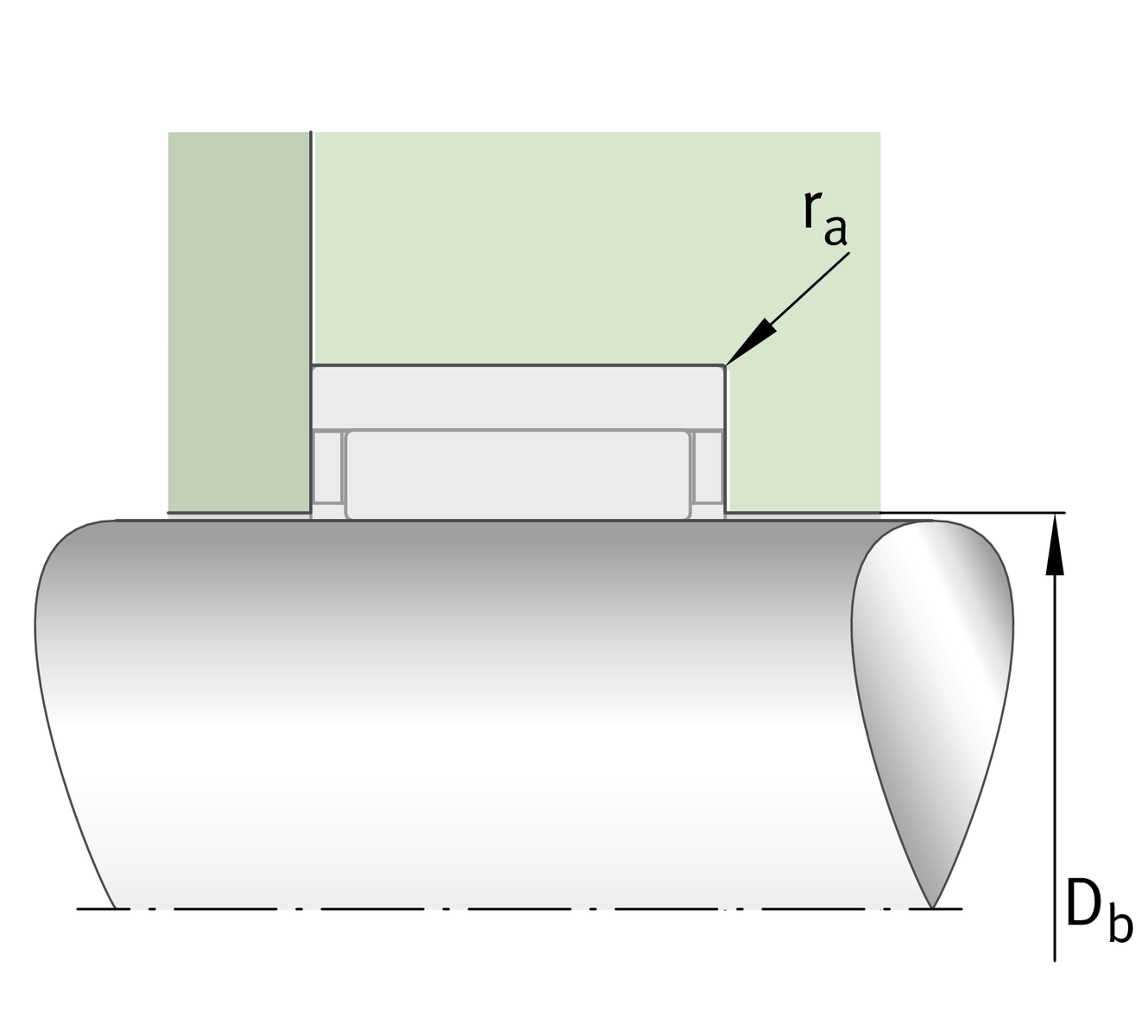

Mounting dimensions
| Db | 8.3 mm | Shoulder diameter axial guidance NK/housing |
| db | 10.7 mm | Shoulder diameter axial guidance NK/shaft |
| Da | 11.3 mm | Shoulder diameter outer ring |
| ra max | 0.3 mm | Maximum recess radius |
Dimensions
| E | 11 mm | Raceway diameter outer ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
